Sparklines: theory and practice

Theory of sparklines (small, intense, simple datawords) along with many practical examples of recent sparkline developments. Excerpts from Edward Tufte, Beautiful Evidence. New examples or helpful comments much appreciated.

ET

-- Edward Tufte, May 27, 2004

Multiple Sparklines and Bars; Implementation Example from Europe

Below you will see our implementation of your sparkline idea into a standard software application for data analysis. We have always been very impressed of your rich examples and ideas for visualization. The example shows data of a pharmaceutical manufacturer. The chart helps in comparing the performance of their sales districts.

After having inhaled your books I set up a list of several dozen improvements we are going to implement. We would appreciate and look forward to any comment or feedback from you.

Sincerely yours,
Nicolas Bissantz

-- Nicolas Bissantz (email), June 1, 2004

The red dot should refer to a specific number, as in the glucose example on the opening page of the chapter. The bar chart wastes space; you could show at least 100 numbers in the space that now shows 1 number. People read numbers in tables all the time (see the financial section and sports section of any good newspaper) and they don't need bars to see a bar to understand 1 number.

Background colors, frames and boxes don't add much. Avoid all data frames; the physical location of the numbers, words, and graphics enforces the implicit grid; that grid never needs to be expressed directly. See the euro exchange-rate table in the sparkline chapter; also the material on frames near the end.

-- Edward Tufte, June 1, 2004

Remarkable illustrations of firefly flights/flashes

Here's an illustration of different firefly flight/flash patterns (I suspect the original is much nicer than the web image):

http://ase.tufts.edu/biology/Firefly/#Flash

A straightened-out presentation of the traces would resemble the highway stripe graphic in Chapter 7 of "Visual Display."

-- Alex Merz (email), June 5, 2004

Outlier treatment

I have a request for your "how-to" section. How would you handle a sparkline that has a value well beyond the normal value, since sparklines have an implied boundary?

For example, a "drug X" may sell about one hundred thousand dollars a month for "illness 1" and then the drug may have a new found curative value for "illness 2". "Illness 2" has no other drug, which would then put "drug X" in a dominating position with sales in the millions. How would you handle the above scenario?

I'd also like to see a weather example that uses the gray band for normal ranges and possibly the use of red and blue for temperatures above and below zero.

Sean

-- Sean Gerety (email), June 8, 2004

Outliers are a problem in most statistical graphics, especially so in sparklines because of the limits on the y-axis. Taking the logarithm of Y is a good way to plot highly skewed data. Broken scales are sometimes used. Presumably tables will work. It does depend on what sorts of variance are relevant.

Brad Paley and I prepared some weather sparklines, although not with the good idea of cool/warm colors, but those sparklines have not yet made their way into the chapter as it moves toward closure.

-- Edward Tufte, June 9, 2004

arctan transform?

Plotting arctan(x/x₀) instead of x is very effective for stabilizing residual plots with outliers. If the scaling factor x₀ is chosen so that non-outlier values of x/x₀ fall in the range -0.6 to 0.6 then the arctan is within 10% of the unscaled value (close enough to pass unnoticed in a residual plot), but outliers, no matter how large, remain plottable, but still recognizable as outliers. In practice, even if outliers are present one can still, for example, recognize a systematic trend among the non-outliers.

I have the impression that this approach is very little used, but I read about it around 25 years ago, probably in Technometrics or a similar journal.

-- Athel Cornish-Bowden (email), June 10, 2004

Interpretation of transformed variables in regression equations

Some transformations have reasonable interpretations, some don't. In the 2-variable case, log Y on X, Y on log X, and log Y on log X, the resulting slopes have clear substantive interpretations with regard to the XY relationship. Log Y on log X is particularly helpful since the resulting slope is the elasticity of Y in relation to X. Similarly for Y on 1/X, or for log odds Y on log odds X. (More details in my Data Analysis for Politics and Policy, pp. 108-131.)

But for Y on arctan X, what does it mean to a reseacher to say that a unit change in arctan X is associated with a corresponding estimated slope change in Y? Thus optimizing the statistical properties of univariate distributions, usually by transforming them into a normal distribution, may at the same time be denying straightforward substantive interpretations of bivariate or multivariate relationships. Peculiar transforms useful for statistical courtesy seem contrary to nature. That is, there are probably no laws of nature where Y varies in proportion to arctan X (an assertion I may regret).

In the case of sparklines, Y transforms should make sense in terms of the velocities up and down the time-series. Time-scales can also be transformed, for example, to estimate doubling-times (try logs to the base 2 of time).

I was recently looking at some regressions of art auction prices on time; the researcher included 5 powers of time (t, t-squared, t-cubed, t to the fourth, and t to the fifth) in the multiple regression, resulting in the ludicrous situation of figuring out, say, the meaning of a cubic year, a unit change in cubic year, and how that relates to changes in price. Little drawings of square years and cubic years didn't help. And drawings were impossible for the hyperspace time scales. Yes, the researcher was looking for turns in prices over time, but the exercise had by then turned into mindless curve-fitting.

-- Edward Tufte, June 10, 2004

We've incorporated the idea of sparklines into a new project that we thought might be of interest to readers of this thread. Data visualizations of Google's massive news aggregator seem like an interesting way to graphically keep tabs on developing news stories. We've built an In The News visualizer which provides a visual reference for Google's "In The News" sidebar (seen at news.google.com), providing an archive of popular news items, links to headlines, and a method for comparing news item performance over time. We think this is going to be increasingly interesting as the US election season progresses, and stories about world events erupt and subside. The interface can be refocused on specific names, and groups of items can be compared over time using sparkline graphs. news.stamen.com

-- Eric Rodenbeck (email), June 15, 2004

Perl script for sparklines

I wrote a quick Perl script for generating sparklines on the web. This one uses financial data from Yahoo, and the example is based on Yahoo's market overview. The script's output is SVG, and thus requires Adobe's SVG viewer or similar. For those unfamiliar with SVG, this is a xml-based vector graphics representation.

This is a quick implementation, so I'm open to suggestions/modifications/corrections/ etc.

Mariano

[link updated March 2005]

-- Mariano Belinky (email), July 3, 2004

Mariano Belinky's work is very good.

-- Edward Tufte, July 4, 2004

Dr.Tufte, thanks for your positive comment.

This is what my script will output so far:


The sparkline can be divided in two: historical data and realtime information.
The 2-axis chart (historical last price and volume) plus min and max points is clearly historical, while the last price, last change and last volume (this area could also be used to show open interest or bid/ask data) is real-time.
This is a work in progress, and one thing that strikes me as missing is the x axis scale. As it is now, the chart histort might be one day, one month or one year. I'm curious to see how other people in the forum would solve this.

Thanks,

Mariano

-- Mariano Belinky (email), July 4, 2004

The stock-price sparklines are quite beautiful. Especially gathered as small multiples. I still wonder about their integration with text. In the example on Sr Belinky's site the news story is clearly about one day of market performance. The sparkline information is largely irrelevant to the story - something akin to putting the etymology of certain words in very small gray type in the middle of a sentence.

In the larger picture, one of the design intentions of sparklines is to broaden the visible context of evidence. Perhaps we are hoping that the regular inclusion of sparkline graphs in market reports will lead journalists to analyze performance over greater spans of time -- making their reports more hospitable to this type of presentation. To extend my metaphor, you might say that including the etymologies of various terms in a text would encourage the author to be more careful with word choice. It may be good writing practice, but the reader would be better served by a clear text than a nest of parenthetical displays.

I'm still waiting to see the example of sparklines in body text that truly convinces me that they're anything but a misplaced footnote interrupting, rather than supporting the text. Nevertheless, I must suspend judgment until I can see Dr Tufte's pages in print.

-- John Morse (email), July 7, 2004

Nonetheless, Mariano Belinsky's example is most impressive -- not necessarily as a way of integrating graphs into text, but as a way of packing a tremendous amount of intelligible information into a small space. Even printed at high resolution on paper there are few examples that get as much information into a small space as he does, but on a computer screen I have rarely seen anything approaching it. By my estimate he has 90000 pixels for the 15 stocks shown on his web site, or 6000 per graph, yet one can easily see what each graph is doing and where any sudden changes occurred. The use of colour is nice, as well, though not entirely logical: red is used for stocks that fall and also for the yearly low, which is fair enough; but the implied logic is not carried over to the stocks that rise and the yearly high, which are blue and green respectively.

I'm not too worried about the lack of a scale for the x axis, because it's not too difficult to mentally break up a year into months. However, it might be possible to use vertical white lines to mark off months, or, if that was too noticeable, quarters. Somewhere, however, either in the text or on the graph itself, there ought to be a clear indication of what the time period is.

I am not at all keen on abbreviations. No, that puts it too weakly: I absolutely detest avoidable abbreviations, especially if they aren't guessable. I can guess what AMZN and MSFT are, and maybe AA, but most of the others suggest nothing at all. With slightly smaller type (and mixed upper- and lower-case) one could use much more obvious labels: "Amazon" takes barely more space than "AMZN", and even though "Microsoft" is appreciably longer than "MSFT" there would be room for it.

In my field (biochemistry) I argue about this all the time with people who try to insist that (for example) "everybody knows" that LADH is liver alcohol dehydrogenase and NADH is reduced nicotinamide adenine dinucleotide. The problem, however, is that not everyone who reads any given text is expert enough to know what "everybody knows".

-- Athel Cornish-Bowden (email), July 7, 2004

A somewhat limited empirical poll seems to disagree with John Morse's commentary on context of evidence. After the first couple of development iterations for the stock-price sparklines script, I showed it to a couple of traders and research analysts to get some feedback.

The response I got surprised me. The traders didn't seem to like the small multiples, preferring more traditional screens which present less information and a more conservative overall arrangement (I can post a few screenshots if required, but they are basically huge tables with stocks displayed as rows of data). They did suggest some changes (they did point out the color problem Athel Cornish-Bowden mentions in his post), which I will make. Among the interesting feedback bits, someone suggested adding "alerts", i.e. small icons on either side that reflect, among other things, market news for the specific stock, analysts estimates changes, etc. Another interesting suggestion was the inclusion of further color coding for the last price if the price is at a 52-week high/low, and adding the bid/size prices and sizes as well.

The analysts, on the other hand, seem to love the sparkline integration with text. They rationale is that, when printed, text often refers to charts that are either on the margins of the text, usually with a very poor information to size ratio, or not there at all. Thus sparklines allow for uninterrupted reading, while getting a decent idea of what the writer is trying to convey. If more detail is needed then bigger charts become useful. When the text is on screen, the problem seems to be that several clicks are needed to open all charts (in the yahoo example I used the links are not even part of the text), so a similar (and perhaps more distractive) problem arises. One of the analysts mentioned how well this would work for example for paragraphs that compare two or more instruments based on historical performance.

Time period seems important to the analysts, but not to the traders, who seem to assume that the information refers to the current trading session, and the unit to be "ticks".

On the abbreviations issue, I tend to agree with Mr.Cornish-Bowden, and not being a trader or analyst myself I usually have a hard time remembering the stock tickers, but as he points out, expert users tend to remember then, and so full names are, in this case, unnecessary.

-- Mariano Belinky (email), July 7, 2004

"Daticons" instead of "sparklines" or "datawords"?

I would like to suggest another possible name: daticons. (I’m pronoucing the ‘i’ as in if—I’ll leave it up to you to decide how the ‘a’ in dat should sound.)

By combining data and icon, the name communicates the idea of packaging information in a small graphic. It avoids the linear bias of sparklines (which makes me think of an entire line of text, not just a single word). It also dodges the possible confusion with Microsoft products that might accompany wordgraphs.

As a bonus, it appears to be a novel word, at least on the web. When I googled daticons, there were only six hits, and they were all in Italian. That leaves you free to define the word without worrying about competing meanings that might confuse your audience.

One possible fly in the ointment: datacons (with an ‘a’ instead of an ‘i’) generates a lot of hits on google, including a company by that name.

-- Hilary Mark Nelson (email), August 27, 2004

No way

con has too many meanings, some unfortunate.

-- Edward Tufte, August 28, 2004

"Sprites" rather than "sparklines" or "datawords"?

Computer animators and motion graphics designers would call sparklines a sprite. A sprite is a single graphic or encased animation which is made dynamic in a larger context such as a depicted scene, or in this case a text display.

-- Jeff Berg (email), September 7, 2004

Tonight my friend Philip Greenspun and I discussed sprites after dinner during dessert, 2 homemade hot fudge sundaes, and we don't think sparklines are sprites. Weren't sprites a hardware feature of old graphics cards intended to support moving elements in video games?

-- Edward Tufte, September 7, 2004

Example of stock sparklines shown...

I just noticed a sparkline in use!

http://finance.yahoo.com/q/cq?d=v1&s=C+AIG+GE+VIAb+PFE

There are sparklines for each of the stocks quoted.

-- Corey Newport (email), September 22, 2004

...and critiqued

It's a shame about the black border in the Yahoo example above...

-- Tchad (email), September 22, 2004

It is good to see some consequences, the use of sparklines in Yahoo financial presentations.

The little boxes, however, look exactly like the bad designs shown at the end of the chapter on page 18! (Note the red X on page 18.)

Just make the boxes a light blue to indicate that they are clickable (blue signals such elsewhere on the screen). Why should celebrating "interactivity" corrupt and dominate content? Thoughtful design will allow both the content and the linking bureaucracies to express themselves appropriately, which is to maximize content and minimize linking bureaucracies.

-- Edward Tufte, September 22, 2004

One might also note that the Yahoo! Financial "sparklines" are showing market activity only over the course of a single day. This time-frame seems to undermine the sparkline's ability to provide meaningful context and reduce "recency bias" just as effectively as the graphic frame undermines the sparkline's effectiveness as a readable typographic entity.

-- John Morse (email), September 23, 2004

Re: "Yahoo! Financial "sparklines" are showing market activity only over the course of a single day".

The link opens a larger chart, with many options, including other time frames.

-- David Cerruti (email), September 27, 2004

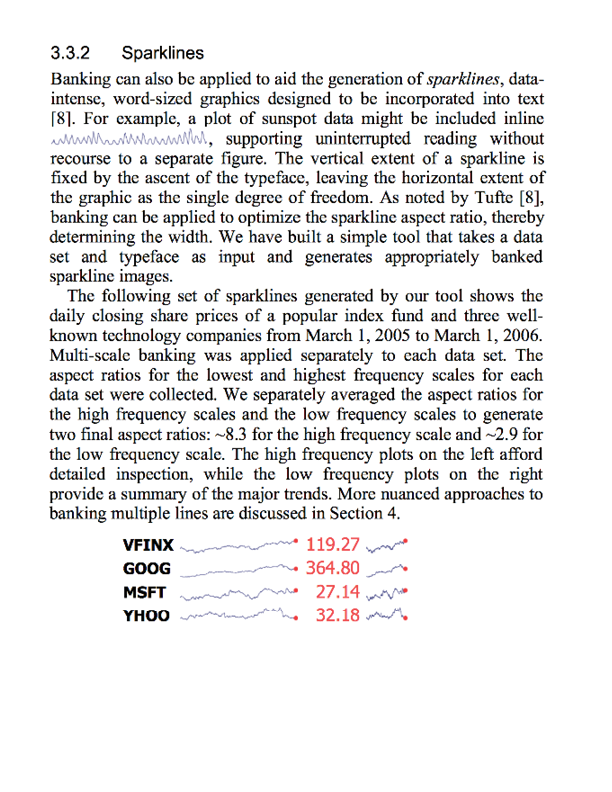

Banking to 45 degree slope in sparklines

The suggestion concerning scaling the representations to have approximately a 45 degree angle of change as a cue to the velocity of change suggests two ideas:

First, that is the point at which the sine function is at its greatest rate of change, providing some small justification for that suggestion; the eye is more able to detect the pattern of change, because the relative amount of change is greatest at that point.

Second, sparklines seem to have characteristics of both one and two dimensional shapes. Although fractals are no longer in vogue, applying those ideas might yield useful techniques. Thus, choosing a fractional dimension too small, that is, too close to 1, might result in an display similar to the poor baseball W/L sparkline, while a dimension too large could result in the poor sunspot example. This might help the representation of outliers as well.

-- Joe Gawron (email), November 9, 2004

XAML sparkline generator

I've created a XAML example of a sparkline. XAML is Microsoft's markup language for their next generation UI presentation engine. Here's a first attempt.

The full text, images and code can be found here: http://dotnetjunkies.com/WebLog/metablog/archive/2004/12/03/34896.aspx

I like what James Byers has done with http://sparkline.org and would like to see Sparklines available in many formats: PHP, Perl, XAML, SVG, etc. James, what do you think about making sparkline.org a clearing house for sparkline code in general? Or perhaps Professor Tufte could add a download section to http://www.edwardtufte.com for sparkline code?

I think that there would also be different sparkline implementations for various functions. Medical data, financial data (one year span), sports scores and weather data.

Sean

[link updated February 2005]

-- Sean Gerety (email), December 13, 2004

Sparklines in text

I thought I would also post a use of actual sparklines. I found them useful in presenting data from cognitive modeling exercises. The following is an example of how I used several sparklines to describe working memory usage against capacity for an Air Traffic Manager implementing an air traffic restriction known as Miles-in-Trial (MIT). This initiative increases the minimum separation between aircraft.

-- Estes, January 14, 2005

Sparklines as a Windows TrueType Font

Dear Prof. Tufte,

we implemented both Barsparks and dichotomous Sparks as a Windows TrueType Font (TTF). Typing 61023647679 gives you , and +/++-+++-++++//+ produces . A TTF can be created easily, e. g. using graphical software like CorelDraw, and it can be printed even in very small sizes.

Our font uses eleven characters ("." and the numbers 0 - 9) which differentiates in about .5 mm steps when using a 12 pt font size. For dichotomous Sparks we use "+" for upward whiskers (wins, in the baseball example), "-" for downward whiskers (losses) and "/" for ties.

Download the font from http://www.bissantz.de/sparklines

The above text in a Word document using our Sparkfont

Kind regards - Nicolas Bissantz

-- Nicolas Bissantz (email), January 25, 2005

To my innocent eye at least, the idea of the sparkline font seems very clever. Good for you.

-- Edward Tufte, January 25, 2005

Nicolas,

if you assigned shortcut keys in numeric sequence (ctrl-0001, ctrl-0002, . . . ctrl-9998, ctrl-9999 would map to a set of bars in shortest to tallest order) you could make bars accurate to four significant digits. Similarly you could make points to four significant digits. A kerning table could allow dots to be squeezed into a line. In this way graphing scripts could simply call characters; horizontal scale could by changed by fine tuning the kerning table. Perhaps CSS3 or CSS4 will support that...

-- Niels Olson (email), January 25, 2005

Nicolas, Great idea. One thing, to expand on Niels' comment, is that the bar spark currently only allows for positive values. However, there are many instances where negative values are required and sometimes a mixture of positive and negative. In effect then, this would require three sets - all positive, all negative and a mixture. Is this relatively easy to do? I would disagree a little with Niels though, in that as this font is designed to be used just within text as one is writing, having accuracy to four significant digits would seem unnecessary, as this isn't what is designed to be shown with a bar spark.

-- Will Oswald (email), January 26, 2005

Sacrifice a significant digit and make the first one + or -: ctrl-+001, ctrl-+002, etc and ctrl--001, ctrl--002.... To use the full ascender and descender height of the line you would have to set the horizontal axis at something above the normal writing plane, sort of your x-height for the font. If the eye can only extract two significant digits, then use use another ctrl character on format. Use b for bar, p for point: ctrl-b+01, ctrl-b+02; ctrl-p-01, ctrl-p-02....

-- Niels Olson (email), January 26, 2005

2004 Baltimore Orioles Run Differential Sparkline

Here's my shot at David Rosen's suggestion. Below is a run differential sparkline for the Baltimore Orioles 2004 season (data courtesy of ESPN.com).

Same conventions apply, but instead of adding the thin line along the middle to indicate home games, I added a gray shaded area that signifies winning/losing within 5 runs (an arbitrary number), and homestands. The little star indicates the All-Star Break, which for the Orioles occurred after 85 games.

Suggestions/critiques welcome. —tec

(Note: The image is zoomed in at 400% to compensate for the low resolution of computer screens... which should come as no surprise to loyal readers of this forum!)

-- Thomas E. Cason (email), January 27, 2005

MS Office add-in to create sparklines from Windows TrueType Fonts (TTF)

Following our previous posting about our first prototype of a TrueType Font which can be used to enter bar-style Sparklines in e. g. Word documents, we received quite some positive feedback (thanks everyone!) and decided to carry on this idea.

Firstly, we refined the original font and created 100 characters so we can now differentiate positive values in steps of 1 %. Note that the difference is hard to tell on the screen, but printouts are razor-sharp.

Secondly, we made up four additional fonts which have their zero line not on the bottom, but somewhere in the middle or on top of the characters. This allows for positive and negative values. Multiple fonts are needed to reflect different ratios between the largest positive and the largest negative number. This way we can make sparks like with all negative values, sparks with high negative and relatively low positive values , sparks whose (absolute) negative and positive values are similar and sparks with small negative and big positive values .

Thirdly, we included the dichotomous sparks for indicating wins, losses and ties, for example in soccer, tennis or baseballs matches.

And finally, we tried to construct lines from specifically crafted characters that represent line segments. From the data set we want to visualize, we derive a grid of, say, 20 groups. Each data point in the set is assigned to one of the 20 groups, and each group is graphically represented as a dot. It is then possible to draw all the connections between any two points. These line segments can be combined and result in a line-style Sparkline, with or without the points.

Since we now employ several hundred characters from our "Sparkfonts", we programmed "SparkMaker", a small add-in for Microsoft Office products. This tool is used to enter the data. It will calculate which fonts and which characters have to be used to get the matching Sparkline, and it will insert the ready-formatted Sparkline into your Word, Excel or PowerPoint document.

To evaluate, you can download the SparkMaker tool and the fonts from our web site:
http://www.bissantz.de/sparklines

Screenshot of SparkMaker in MS Word 2003

Kind regards - Nicolas Bissantz

-- Nicolas Bissantz (email), February 25, 2005

Sparklines in Formula 1 racing

This is very nice. I can't remember how I wound up reaching it, but I'm glad I did! Thanks, and I'm looking forward to the new book.

It gave me the idea to try something I wanted to see. In Formula 1 racing it is always said that your biggest rival is your teammate (because he's the only one with the same car). Sometimes they show stats in tables so that you can see teammates compared, but I don't remember seeing a graph. So I tried to come up with something to see what could be seen. My first try is the following. This shows the results for four pairs of teammates in the 1996 season:

The drivers' names are on the left. The gray bars are drawn to the side of the driver that qualified ahead of his teammate and they are all proportional to the difference in time using the same scale. I think I was lucky in that, because probably there are times when the result would be way out of proportion, and I don't know what to do to handle that. Maybe just adjust everything to a maximum like 1 or 2 seconds?

The vertical lines on each side show when the driver finished and was officially classified; the longer the line, the higher they finished. If there is no line then the driver did not finish. Since teammates often finish very close to each other it was necessary to add color (green) to the line for the highest-finishing driver; otherwise it might not be easy to tell who finished ahead of whom. I sort of like having the color only when both finished, for some reason.

To show points scored in each race, I added horizontal red bars at the end of each line. The width is proportional to the number of points scored. When you get a win, the bar is the full width of the race in the graph, so win streaks show up as solid bars (see Hill at the start of the season). The end of the graph shows the season total of points for each driver.

So, these little graphs give

• Who qualified ahead and by relatively how much in each race.
• Finishes and non-finishes in each race.
• Who finished ahead in each race, if both finished.
• Generally how many points earned in each race.
• Roughly how high up the driver(s) finished in each race.
• Wins and win streaks.
• Total season points.

I was originally thinking about setting up a whole career in a line. I do like the results so far, and I wonder if there are ways to improve them. If I can get more data (I only have one old Autocourse book for 1996) then I could show a whole career across one screen. I was thinking that the driver in question would be on top, and a colored line down the center of the x axis could match up with a key to his teammates. Each color would show a different teammate (and maybe team) for a certain time period.

-- Christopher B Hamlin (email), February 26, 2005

Sparkline vs. Bar Chart

An interesting comparison of a sparkline and a traditional bar chart at

http://intepid.com/2004-12-06/23.32/

-- Edward Tufte, March 17, 2005

SparkTicker: an interactive ticker with sparklines for business data

Reflecting on how to increase information density on computer screens, we've been investigating the combination of a moving ticker with sparklines. In our implementation, data can come from Excel, OLAP cubes, relational databases or realtime from web sources. The example shows Dow Jones quotes from 2005-02-16 to 2005-04-15.

SparkTicker

In the desktop version, we have made the ticker interactive, allowing users to access more detailed data through semantic zooming. Three zoom sizes award more screen real estate with more information (iMail = incoming emails).

A magnifying glass eases micro reading whenever necessary. Values are abbreviated following a set of rules which eliminate superfluous details.

For business data we have introduced new sparkline types: The magnitude of deviations is shown as colored boxes on top or below the bars . Gaps differentiate this type from stacked bars. In this other example , shares are represented by partially filled bars, whose overall height show the referred totals. Double bars show comparisons, e. g. to previous year's values .

Due to differing communication standards, another challenging issue for sparklines are cell phones. In order to get some feedback, we send current results of German premier league soccer every Sunday to the phones of a few dozen sports fanatics.

If somebody wants to test the Sparkticker or the cell phone sparklines, please give us a note or refer to http://www.bissantz.de/sparklines.

-- Nicolas Bissantz (email), April 25, 2005

Javascript sparkline generator

I've generated a javascript library for generating sparklines using SVG, a open vector format supported by the W3C. See Javascript SVG Sparklines

-- Jesse Andrews (email), April 30, 2005

Sparkline-like city horizons

The remarkable Jason Kottke has pointed out this sweet sparkline-like image by Jeff Gray:

http://www.flickr.com/photos/jeffgray/15536148/

-- Edward Tufte, May 31, 2005

The Jeff Gray cartoon reminded me of this little quicktime movie

-- Alex Merz (email), June 1, 2005

Spectacular movie that resembles stacked sparklines

It's a beautiful movie. And with a very intriguing design idea: using the musical staff flowing over time also as a perspective grid to show a third dimension receding back into the scene.

Can a Kindly Contributor please provide a credit line for the movie?

(By the way, entering "music staff" into Google returns all sorts of interesting things.)

-- Edward Tufte, June 1, 2005

The author of the short animation can be found at http://www.hellofranck.com/

There is little information about the author but he (or she) is either danish or norwegian

-- Andrew Nicholls (email), June 2, 2005

Sparklines for financial data

Here is my interpretation of sparklines in a product I am working on -

I finally settled on vertical bars as the indicator of highs and lows because it is difficult to get a dot to stand out at normal screen resolutions and if you make the dots too big they drown out the sparkline. It also highlights stocks that have multiple highs and lows (eg ARG and RIO) By placing the open and close prices aligned with the ends of the sparkline eliminated the need for other coloured dots and also gets around the problem of what happens when the high/low is also the open/close.

The data are Australian Stock Exchange stocks for the last twelve months.

-- Andrew Nicholls (email), June 2, 2005

Sparklines continue to gain notoriety. See the recent article at xml.com. The link to the technorati site is interesting as well.

-- Simon Shutter (email), June 23, 2005

TiddlyWiki sparklines

TiddlyWiki in it's latest version has a sparklines functionality: http://www.tiddlywiki.com/#Sparklines . What is TiddlyWiki ? "an experimental MicroContent WikiWikiWeb built by JeremyRuston. It's written in HTML, CSS and JavaScript to run on any modern browser without needing any ServerSide logic. It allows anyone to create personal SelfContained hypertext documents that can be posted to any web server, sent by email or kept on a USB thumb drive to make a WikiOnAStick."

-- Christian Hauck (email), July 13, 2005

Importance flags in sparklines

In the opening example to the sparkline chapter, a gray band is used to signal normal limits; thus when the sparkline peaks above or below the horizon of the gray band the glucose is critically elevated or critically reduced. Yet the sparkline remains clearly visible within the gray field.

This technique can be generalized in terms of "importance flags". Thus when something interesting happens in part of a sparkline, the area of interest can be indicated by a yellow or red field or by a change in the color of the sparkline. Similarly, normal or routine readings can be indicated by a light green field over the sparkline or by making the sparkline segment itself green.

In using importance flags, the color coding should be modest, just strong enough to send the editorial or interpretative signal without masking or detracting from the usual reading of unflagged sparklines. The idea is that the sparkline should sit optically on top of the importance flags, or at least be clearly or even decisively visible through the flagging. We don't want to turn sparklines into vulgar stoplight charts (with their vivid red-yellow-green attitude).

The design theory for making signal flags is found in Envisioning Information, chapter 3 on layering and separation, and in Visual Explanations, chapter 4 on the smallest effective difference.

Implementations anyone?

-- Edward Tufte, August 19, 2005

Combining sparklines with quartile plots

First or all, thanks to Tchad for the suggestion on where to post the images. I wanted to get some feedback on an idea for combining the ideas of a quartile plot (distribution in the same chart across multiple instruments) with sparklines. In financial markets, for example, the yield curve is observed as the maturity on the x-axis versus the interest rate on the y-axis. A quartile plot will show some information but frequently, one needs to be able also to put the information in an historical context.

The most obvious way in which to do this is by instead replacing the quartile plot with a sparkline. This preserves the relative interest rate at each maturity point while also giving more historical context. This can be shown either with or without the min max, as in the two examples below.

Anyone have any comments and any suggestions for improvements (and apologies for the poor resolution of the images)? As always, this has been done in Excel and is easy to implement.

-- Will Oswald (email), September 16, 2005

The aspect ratio of these displays should be adjusted so that the absolute average of the slopes up and down is 45 degrees. That is the time-series should look lumpy, rather than spiky. See the material on aspect ratios near the end of the chapter posted above.

-- Edward Tufte, September 16, 2005

Thoughts on bivariate time-series: We often plot parallel time series (in Will's case above do we have essentially 5 pairs?), with time on the x-axis and response on the y-axis. Why not plot, as Will mentioned earlier, interest rate against yield for all the time points? Then the interest-rate/yield relationship can be shown to shift as a function of time. One of ET's books (I forget which one --- my copies have yet to be unpacked after the move) shows a number of plots of, I think, inflation and unemployment rate and how that relationship changes over time.

For Will's data, I envision 5 small multiples that show paths through the rate-by-yield space over time. The current point can be highlighted, the minima and maxima can be shown and annotated on the axes, and temporal proximity to the present can be shown via shading (more recent data are more pronounced, older data are faded). "Same time last year" and "last month" or whenever, can be shown by a special symbol, perhaps an "M" for month or a "1" or "2" or whatever for 1 year ago and 2 years ago and so on.

If time IS the fundamental causal variable, then I'm not sure the dashed lines connecting the starting and ending points really add anything, except that the start points are growing faster (left to right) than are the endpoints, as shown by the diverging lines, although I'm not sure that comparison is of any value. I guess I like the min and max values but not the connecting lines.

Although my training is in time series, I always find the traditional time series plots academically unfulfilling, since, following the "the data display is the model" idea, they imply that the only thing driving the variability is time. They seem more like reports of what has happened than tools for understanding the sources of variability in the data. I find it more enlightening to plot y against x and let time snake the path around the x,y plane.

Let us all be cautious that the sparkline concept ("intense, simple, word-like graphics") doesn't get morphed into just "tiny time series plots". It seems to me that the goal, with all our displays, ought to be getting as much data in front of the viewers' eyes as is feasible and to facilitate the comparison(s) of interest. Whether the plot is a time series or empirical cumulative distribution function or scatter-plot or whatever, taking advantage of high-resolution display media and small pictures right in the text is in the best interest of large rates of information transfer. Galileo's drawings of the shape of Saturn are certainly not time series.

Perhaps this is an open call for more "intense, simple, word-like graphics" that are NOT time series. <sound of the gauntlet dropping>

-- Rafe Donahue (email), September 16, 2005

Is this an improvement? The data being shown is South African interest rates, which have had periods where they have exhibited very significant spikes.

The problem with determining the average slope is that, in many instances, the data does not change significantly from one day to the next but there are occasional spikes, so the average slope can still be 45 degrees.

-- Will Oswald (email), September 16, 2005

In the context of interest rate markets, the connect-the-dot lines are very important, as this determines the interest rate one earns for investing for different periods of time. For example, investing over a 3Y period earns 7.55% per year but investing for 5Y earns 7.88%. The underlying tenor (1 to 5Y) does not vary but the amount being earned on each and the relationship between them does change. One of the most frequent questions asked within financial markets is how has each individual rate changed over time and how has the relationship between these rates changed over time. This is frequently plotted as a bivariate relationship, showing the yield on what instrument versus the yield differential between that instrument and another point on the curve. However, this makes it virtually impossible to discriminate sufficiently both between many points of the curve and also variability through time. Small multiples could be used but this would need to be more than 5 small multiples (showing every combination would generate 10 charts). This also would miss valuable information contained in the current overall yield curve shape, which must be plotted as tenor versus interest rate.

My overall intention though was to extend on the usual quartile plot (min, 25%, median, 75%, max) across multiple instruments which actually contains relatively little information (not withstanding the cleaner version on page 125 of VDQI), while also giving information about the current yield curve shape. A potential addition could also be to highlight a particular intermediate yield curve shape, as chosen by the user, in order to illustrate how the curve shape has changed.

-- Will Oswald (email), September 16, 2005

Will,

Regarding the aspect ratio and average slope issues: it seems to me that the problem is that you have two trends that compete in trying to bank the data to 45 degrees. There is a low frequency baseline and there are higher frequency movements on top of that. This is similar to the monthly CO2 measurements from the Mauna Loa observatory discussed in William Cleveland's Visualizing Data. ET seems to want the high frequency component banked to 45 while the plot that I see seems to emphasize the baseline trend (roughly).

To offset this effect, you might try to fit the data to a linear baseline, subtract that, then bank the data, and, finally, add the baseline back in. The more sophisticated solution, given again by Cleveland, is to fit the data with lowess, smoothing over a large number of data points (alpha ~ 1, lambda=1); subtract this trend, bank the data, and add the smooth trend back in (or plot the baseline and high frequency separately, but I don't think this will work for your application).

Whether to bank the baseline trend or the high frequency ``spikes'' is a matter of judgement. As always the proper visualization technique is very contextual to the data and cognitive task at hand. So, I thnk ET's advice "lumpy not spiky" is a bit glib. For the sunspot data, yes. But the Mauna Loa CO2 data teaches another lesson -- different trends in the data can compete for the optimal aspect ratio leaving both suboptimal.

So I will end my answer where I probably should have started it, with a question. Which component of the data do you want to emphasize, the high frequency component, the baseline trend, or both? To emphasize the baseline, fit the data to a smooth trend, bank that, and add the high frequency component back. To emphasize the high frequency component, bank it, not the baseline, after smoothing, and again merge the results. Finally, to emphasize both, bank each and plot them separately. IMHO.

-- Sean Garrett-Roe (email), September 16, 2005

Try the aspect-ratio fix.

For sparklines, the idea is to maintain the wordlike quality: the resolution of words, and the ability to fit into sentences as wordlike elements, into tables as table entries, into spreadsheets as cell entries.

-- Edward Tufte, September 16, 2005

Sparkline-like graphics for NASA Ozone Hole Watch

We're almost ready to publish a new NASA site detailing the progress of the Antarctic Ozone Hole:

ozonewatch.gsfc.nasa.gov

Sparklines (well, sparkline inspired-graphs, they're larger than words) show year-to- date maximum size, minimum ozone values, and temperature; in context with (smoothed) historical minimums and maximums. Red dots (maximum signal flags) indicate maximum ozone loss (largest area or lowest total ozone) for the year. Mini bar graphs show the changes since satellite measurements began in 1979. Small multiples make an appearance with globes depicting ozone over the past week (unfortunately the scientists involved were unwilling to change the color scale).

The data is processed in IDL, rendered at high resolution (10 times screen size) and resampled to remove aliasing.

-- Robert Simmon (email), September 20, 2005

Web sparkline generator

I've been experimenting with generating sparklines for the web, and have a client-side solution (images are completely generated in the web browser rather than the server) in proof-of-concept stage. See it at my blog

Here's an example of an image it generates. This is encoded as a data: URL, so it won't appear if you're using Internet Explorer.

I would be interested some guidance: should I antialias the sparkline, or leave it jaggy? The one above is antialiased, which blurs the data a bit. But at this size, the antialias blur seems no worse than the pixelization artifacts that antialising obscures...

-- David Flanagan (email), October 13, 2005

Fractal/sparkline analogy?

Sparklines resemble fractals, in the sense that the form and visual texture of sparklines remain the same as the resolution scale changes. This is seen in the zoom-sketch of the data (63 months, 12 months) for euro exchange rates in the second table and, particularly, in the illustration about half-way down page 8 in the essay at the top of the thread.

The resolution of time-fractals of sparklines can exist in the data-base underlying the sparkline, as viewers zoom through years, months, days, hours, minutes, seconds, and so on. For data analysis, contextual zooms are preferred, as shown in the zoom on page 8. Contextual zooms enforce the micro-macro comparisons resulting from sparkline scale changes, and avoid the where-am-I-now effect of uncontextual zooms that erase the the previous scale version of the sparkline, as too often seen in scale changes when moving in and out of aerial photographs. In this scale shift, note the change in aspect ratio, a matter worth thinking about since the aspect ratio should be data-driven to some extent:

Contextual zooming might be reported as in the big euro conversion table on page 8: a sequence of sparkline table entries at various time-scales.

I hope a Kindly Contributor with a high-resolution database (years, months, week, days, hours, seconds . . .) can construct a good example moving through many orders of magnitude, perhaps following the architecture of the page 8 sketch. There is something of a Powers-of-Ten metaphor here as well, although the fractal metaphor still holds as each new image in the sequence remains a sparkline. This requires a big database underlying the time-series as required by the changing resolutions.

Perhaps the fractal metaphor can mobilize some of the many elegant computer programs for displaying fractals, but now using great piles of empirical data rather than geometric modeling as the basis for depicting and driving images based on scale changes. Such evidence-based fractals would greatly extend the power of sparklines.

Regardless of the metaphor, contextual scale zooms are exactly what sparklines are good at: displaying intense amounts of data, now in-depth, not just as one fixed time-scale sitting there in still flatland. Of course, some dynamics can be added to each sparkline at each resolution as new data flows in, possibily in real-time.

-- Edward Tufte, October 16, 2005

Are sparklines nouns, verbs, equations?

John Morse (this forum, July 7, 2004), wrote his concerns about placing sparklines in text. Indeed, this seems to be something worthwhile ponder (e.g., is a sparkline a noun or a verb?).

It seems odd to me that sparklines have not yet been compared to equations in this forum. Equations have a very high information density, and they occur both within text and as separate, often numbered, items. Once this connection is made, the grammar for sparklines becomes a bit more clear.

For example, I might talk about a how increasing a factor increases a metric of the system I am studying, *sparkline showing increase*, which is contrasted with the reduction of that factor, *sparkline showing decrease*. If the sparklines show timeseries, I will immediately see if the response of the system is liner, exponential, or step-like. Clearly, if the response were governed by different equations, I could equally well put the equations in place of the sparklines.

Sparklines could also be placed within the text as numbered equations are. This way, they could also be referred to later in the text as numbers. This would create an intermediate object between sparklines placed in the text, and a separate table or figure.

-- Rob Hetland (email), November 7, 2005

SAS macro for sparklines

Hello to Professor Tufte and All, I have been following Professor Tufte's work since he first came to my attention about a year ago. I really like the simplicity and power of sparklines. Since I am a statistician, I use SAS in my daily work. So, I thought it would be useful to find a way to make sparklines in SAS from a SAS data set since there are many other statisticians out there using SAS. The more formats that the creation of sparklines are offered in, the more accepted they will become.

I have put together a SAS macro for PC SAS that allows the user to create sparklines by using a SAS data set with the data points arranged in one of the columns. The macro allows the user to select the trend or bar type of sparkline. Although I have been programming in SAS for over 8 years, I am not an expert in SAS/GRAPH, so any recommendations for improvements to the macro would be appreciated. Currently the user is restricted to 11 characters for the descriptive word that appears to the right of the sparkline. The output appears in the SAS graph output Window. My recommendation is to right-click on the output, choose File>Export As Image... and save the output as an image. I have been having good luck with PNG files. You will notice that the font appears rather large, as does the red dot representing the current value, but this is necessary so that when the file is reduced and put into a document, it looks right. Unfortunately there is one additional manual step: you need to open the PNG (or other picture format) file and cut out just the narrow sparkline portion to insert in a document.

Examples and the SAS code can be found at http://home.mchsi.com/~marchendel/sparklines.html.

-- Marc Hendel (email), November 10, 2005

Biblical Sparklines

The next version of the Logos Bible Software app uses sparklines to show the relative density of a root word across the biblical books. Students of the Bible are interested in which biblical authors use which words with what frequency; displaying this information via sparklines makes it digestable at a glance.

We've also made it possible to interact with the graph by hovering the mouse pointer or clicking, which keeps the graph very clean and simple.

I just posted details about the Lemma Density Graph to the Logos Blog.

-- Daniel Foster (email), December 1, 2005

This is very good.

Might the bars be slightly thinner to pick up more data? Can this method be generalized to other concordances and to dictionaries?

-- Edward Tufte, December 1, 2005

Thanks! I was delighted to receive a personal response. To continue the conversation a little, this is the response of Eli Evans, one of our "Information Architects" who helped design the Lemma Density Graph...

He asks if the bars could be thinner. They could, but it's a usability issue. When I was doing the mockup for this I found that if the bars got much thinner than they are right now, there was a real difficulty in getting the mouse pointer over the bar you wanted. In my experience, people aren't accurate with a mouse to within more than about 4 pixels. Besides, that's just about how fat the little finger is on the end of the hyperlink hand pointer! BTW, yes, this display can be adapted to just about any corpus.

When working with the graph I would have to agree that the thickness of the bars is about the practical minimum. The user has to be able to pause the pointer over the desired bar for the tooltip pop-up to appear.

One nice touch that didn't get demonstrated in the previous screenshot is a yellow highlight that follows the mouse pointer and helps indicate which bar it's over.

-- Daniel Foster (email), December 2, 2005

Use a broader yellow cursor-location-indicator show up centered over a narrower whisker of data. Or use a triangle pointer to the narrowed whisker. Or have the whisker light up when it is cursored over. Or use a lens cursor. Or 10 other possibilities. Also you are giving up resolution for interaction, often a poor tradeoff showing statistical graphics on the computer. The resolution of computer screens for sparklines is already compromised compared to paper, so don't give into mouse factors usability, but instead design your way out of the problem.

For lots of practical examples along with the theory, see chapters 2 and 3 of Envisioning Information.

Designers tend to reduce content resolution, particularly the resolution of statistical graphics. For evidence and the reasons why, see chapters 3 and 5 of The Visual Display of Quantitative Information.

Those who care about content should insist on high-resolution design solutions. The attitude of the content people toward design should be "Don't tell me why you can't do something; instead figure out a design solution that is worthy of the content and the analytical issues in reasoning about the content."

-- Edward Tufte, December 2, 2005

Daniel,

regarding ET's advise to ". . . just have a broader yellow cursor-location-indicator show up centered over a narrower whisker of data . . . ." See the Flickr Organizr for an example of graphic web content made larger on mouse-over.

-- Niels Olson (email), December 3, 2005

Sparklines in text: cozy example

little vignette concerning the distribution of student ages in the piano class is here.

-- rafe donahue (email), December 12, 2005

EEGs from the Hive Mind - Google Zeitgeist 2005

http://www.google.com/press/zeitgeist2005/worldaffairs.html

Nice abstract of the vast database they must have built up to track what folk are interested in. Small multiple graphs, quite good design, showing daily(?) search frequencies for specific terms over the calendar year ("Tsunami" goes back to December 2004).

Weekly cycle is clearly visible, plus super-spikes e.g. "London" on 7 July and again on the 21st - the days of the bombings. Unfortunately y axis not labelled but some graphs show multiple series allowing comparison e.g. the public's volatile preferences for Britney, Shakira and Mariah.

Also interesting to compare shapes e.g. natural disasters seem to have a sharp attack and a long decay but celebrities have narrow symmetrical spikes.

-- Brian Davies (email), December 20, 2005

Excellent sparkline-like graphics from Robert Sedgewick, Algorithms in C (1998)

Sparklines and sparkline-like graphs can also move within complex multivariate spaces, as in these 9-step sequential results (reading down the columns) in merge-sorting 5 different types of input files. Four variables and 18,000 numbers are depicted in these small multiples.

Here are the results of 7 sequential passes to sort a 200 element file in bottom-up merge sort:

These merge-sort images above are a bit large in order to accommodate the resolution of a computer screen. But this material can achieve sparkline-resolutions when printed out on paper.

-- Edward Tufte, January 23, 2006

Red/green distinctions in data displays

It was Nick Van Valkenburgh who referred to red-green colour blindness (on 6th March 2005). This is almost an insoluble problem once one decides to use colour at all, because people who can see red without difficulty tend to find it an excellent colour for having anything stand out from the rest, and such people are not only the large majority (much more than 90% I suspect: see below) but they also find it hard to imagine the difficulties that those in the minority have. One thing to remember is that in many contexts grey-scales work much better than colour-coding anyway, as our brains have built-in ways of ranking shades of grey that they don't have for different colours. (ET discusses this in one of his books: I forget which one, but it's at home, so I can't check.) Unfortunately I doubt if shades of grey are sufficient to make distinctions in anything as small as a sparkline, but one can experiment.

The figure of 10% of males (not of people, for which the proportion is very unlikely to be more than 5%) is often quoted, but I believe it is misleading. There are many people (myself, for example) who would fail a test of red-green discrimination if they were applying for training to be fighter pilots, but that is a very stringent criterion and excludes a lot of people who by no means regard themselves as colour-blind for everyday activities, and who have no difficulty in seeing a red dot among a group of black ones. In any case, even if red-green colour blindness is the commonest form it is not the only one, and making things better for the red-green colour-blind may make them worse for others.

As an anecdotal piece of evidence, about 25 years ago I was at a meeting where one participant, fully red-green colour-blind himself, complained at the use of red in early computer graphics for making things stand out. He asserted that about 10% of males were colour-blind, but although there were around 60 people present (mostly male) he was the only one who had any problems.

Note that I am not saying that the problems are not real, or that we should make no effort to prevent them from arising, only that I believe that in practice they affect a lot fewer than 10% of people. Even if they only affect 1% of people we should take them seriously. As the user of a minority operating system (Macintosh), and user of a browser (iCab) that is used by a small minority of that minority, I am quite familiar with web sites that announce that they do not "support" the browser that I choose to use. No matter how small the minority affected adversely by a design decision we should always do our best to cater for it.

-- Athel Cornish-Bowden (email), February 1, 2006

Red/green and other special interests

I liked ET's answer to the colorblindness issue at the end of the Skeptics Society lecture (and I seem to recall this from the one-day course): yielding design to one special interest group opens the designer to demands from every special interest group, of which he estimated there are about 20. Better to design well.

Personally, I'm left-handed. Driving, cameras, guns (I'm in the military, this is a serious problem), sissors, "ergonomic" mice, dining with someone else next to me (elbows), assymetrically bevelled knives (mainly found in kitchens), rulers, watches, hemostats (and I'm in medical school: watch out!), and many other medical instruments, but most of all, writing.

I'd like the English-speaking world to redesign the language to be read bottom-to-top, right-to-left, because sometimes my pinkie and the side of my palm pick up so much ink while writing that some of the letters, sometimes whole words become illegible (like when I'm taking notes in a one-day course with 300 other people). This happens more when it's warm (like in a full lecture hall) because of perspiration and the ink staying either soft or wet a bit longer, and I'm quite sure about ten percent of people are lefties (estimates range between 2 to 30 percent for either lefty or ambidexterous). So, alternatively, could we just move the planet a bit further from the sun? Or at least reverse global warming?

-- Niels Olson (email), February 1, 2006

Excellent research on data displays, including sparklines

Arrays of sparklines allow simultaneous multiple comparisons and clustering of sparklines (and their accompanying nouns) into groups, as in the mutual fund example in my essay. Here is a way to do such analysis more systematically,

http://www.cs.ucr.edu/~eamonn/SIGKDD_2004_vistree.pdf

a paper by Jessica Lin, Eamonn J. Keogh, Stefano Lonardi, "Visualizing and discovering non- trivial patterns in large time series databases," Information Visualization 4(2): 61-82 (2005)

-- Edward Tufte, March 12, 2006

Google images for sparkline search

To find good (and bad) examples of graphics, I like the "Google Image" search. The results of "sparklines OR sparkline" are interesting:

http://images.google.com/images?svnum=10&hl=en&lr=&ie=ISO-8859-1&q=sparklines+OR+sparkline

Mike Round

-- Michael Round (email), March 20, 2006

Google images of sparklines

What an interesting and odd collection, some 8,000 images of sparklines in a recent count.

For some reason, I don't go to Google Images often enough. Presumably the image collection is based on verbal tags accompanying the image and so a lot is missed. But there are several very interesting sparkline applications, particularly

http://snow.barratt.com.au/misc/NSW.20050911_0400.jpg

-- Edward Tufte, March 20, 2006

Google finance page

What a shame that Google missed the opportunity to improve on the charts created by Yahoo! in their new finance page. The chart design on the main page is quite ugly and would have been a perfect candidate for sparkline implementation. Now that would have made in a step beyond what Yahoo! and MSN are offering...

-- Will Oswald (email), March 21, 2006

ET brief history of sparklines

I gave a talk at Google last December and emphasized sparklines by giving out a 4- page technical report on sparklines at the beginning of the talk and then asking everyone to read it. After that, I worked my way through the report. My goal was to alert them to the idea of sparklines and then that they would envision all the wonderful possibilities (especially given their excellent sense of analytical design). I gave somewhat similar talks at Genentech and JPL on that trip.

Yahoo uses sparklines for some financial data. The Google financial graphics are competent but utterly conventional. (Maybe someone can post a sample page and also post a redesign combining tables and sparklines, thereby breaking free of standalone graphics). A model for that might be the exchange-rate example in the draft chapter posted at the beginning of this thread.

One problem is that, at leading edge of really high-resolution sparklines, we need paper's resolution. Computer screens are OK but they don't operate at the intense resolutions needed by sparklines at their best. Computer displays operate at about 10%-15% of the resolution of paper, a performance level that doesn't matter that much for routine analysis but does matter for serious, high-resolution visual data analysis.

I had hoped that the New York Times in their revisions of the mutual fund and stock market tables would take advantage of paper's resolution and build in the daily sparkline histories for a year of each of the 800 or so mutual funds on a single page of newspaper. (I sent an early draft of the sparklines material to the paper's design director a couple of years ago.) The idea is to exploit paper's comparative advantage, high resolution, over the computer screen. That might be one way for newspapers to survive, for a while, internet news. On a Times mutual-fund tables page, for example, sparklines would put 400,000 additional prices and changes in prices on each printed page of the market table, and make those tables just sparkle. Readers would soon discover that there are not 800 different funds on that page but probably only about 25 or 43 or something like that, since many funds share roughly identical day-to-day price shifts for a full year--as we saw in the top 10 mutual funds example in the Beautiful Evidence chapter draft on sparklines presented at the beginning of the thread. Mutual fund comparisons are more complicated than that, but the daily year-long comparative price paths are a good start.

My first sparkline sketches were made some 15 years ago when I reviewed an HP medical interface for monitoring hospital patients (which involved, I recall, a Unix box for every ICU patient, or maybe a Unix box on a cart wheeled around the hospital). The idea was to put sparklines on the margin of a big spreadsheet recording all patient data (event by time), thereby summarizing the time-series history of each event category. My conclusion was that the medical staff would rarely look at the original spreadsheet and would instead just look down the column of sparklines showing the events time-series. And then the original medical event spreadsheet could then be down-screen if a user wanted details.

-- Edward Tufte, March 21, 2006

Web monitoring with sparklines

A neat little example of sparklines at this blog:

http://since1968.com/article/130/sparks-updated-to-show-stats

-- Edward Tufte, March 22, 2006

Sub-pixel resolution for sparklines?

David Flanagan asks above whether it's best to use anti-aliasing or not, when implementing a sparkline for display on monitors, and Professor Tufte frequently points out that monitors have poor resolution compared to printers.

This prompts me to ask, has anyone implemented sparklines for display on monitors that use so-called sub-pixel resolution techniques? This is the practice of improving the appearance of fine lines or edges by taking advantage of the fact that a colour "pixel" on a monitor is really three physically-separated elements, each a different colour. Microsoft has used this technology in its ClearType fonts, but I haven't heard of it being used for graphical display purposes.

-- Derek Cotter (email), March 31, 2006

Sparkline-like historic beauties

Here are a variety of sparkline-like drawings, some of them leftovers from my Beautiful Evidence files (that didn't make it into the published book).

(From Sotheby's, Livres et Manuscrits, Paris, 30 May 2006), 86-88.

Below, a double-page spread dropped from a nearly final draft of Beautiful Evidence:

-- Edward Tufte, May 23, 2006

Web and OS monitoring with sparklines

The terrific OS X program Menumeters has the ability to plot network traffic and other operating system statistics as sparklines in the apple menu bar.



-jason libsch

-- jason libsch (email), May 25, 2006

Sparklines

Some fine sparklines at

http://www.juiceanalytics.com/weblog/?p=84

It would helpful to combine the sparklines with the standard data table.

Also interesting adsense sparklines, unfortunately dequantified by Google:

http://infosthetics.com/archives/2006/05/google_adsense_sparklines_visualization.html

-- Edward Tufte, June 2, 2006

Sparkline-like elements from a 13th-century bible manuscript

Decorative tendrils running around this page from a 13th-century manuscript bible hint of sparklines.

From Sotheby's London, Western Manuscripts and Miniatures, 6 July 2006, 33.

-- Edward Tufte, June 13, 2006

Excellent animated sparklines flow with music

The online music store Bleep uses a sparkline histogram illustrating the volume/intensity of the music track on their player. See http://www.bleep.com/player.php?track=WAP200CDD_DM-01.

Click any part of the chart to sample 30 seconds of music, highlighted in green. You can watch the histogram build itself at this link

-- Kevin Rafter (email), June 15, 2006

Sparkline in InDesign

For those who use InDesign, once installed on a Mac, the SparkFonts from Bissantz appear in InDesign's font menu and individual characters can be selected via the Glyph window. It may not as easy to use as Bissantz's Word tool, but it will work for occasional use until someone creates a Sparkline tool specifically for InDesign.

--Mike Perry, Inkling Books, Seattle

-- Mike Perry (email), June 21, 2006

New York Times sports sparkline

The New York Times sports section on June 23, 2006 displayed a sparkline-like graph showing the outcomes of the last 218 basketball games of the New York Knicks. As our scale of measurement shows, the graph is 12 in (30 cm); a real sparkline would be a little over 2 in (5 cm).

The graph is nicely integrated with surrounding text, numbers, and images. The whiskers showing wins are too light compared to the whiskers showing losses. The win-whisker blue-tint is also used as a background tint immediately above, an unnecessary congruence. Wins might be shown in red not pale blue. The instructions for reading the sparkline "Below, each tick mark represents a victory or loss..." are not needed especially since the two rows of ticks are labelled "victories" and "losses". (Why not "wins" rather the "victories"? Perhaps because "wins" is both a verb and a noun.) Those labels are not needed; every reader of the sports page will know what the whiskers mean. After all the reader is expected to understand these fancy words in the reports accompanying the graph:    sycophantic         perpetuity         passive-aggressive         tenure         enigma         pariah         dysfunctional

Both the column and the news story psychologize about the personalities of those in the team bureaucracy rather than the performances of basketball players and their competition, both of which might have something to do with the team performance. Of course not every column or news story need fully account for all the sources of variance, but these stories seem a bit one-sided in their mode of analysis.

The graphic reporter is not credited for her or his good work, although the columnist, reporter, and photographer are. Publicly acknowledged creatorship signals responsibility for work and also often improves the quality of work.

-- Edward Tufte, June 26, 2006

More on NYT sports sparkline

The enormously talented and productive Jonathan Corum, who took my course in analytical design at Yale, and who founded

http://www.style.org/

http://www.13pt.com/

and is now a graphics editor at The New York Times, writes in about what turns out to be his basketball sparkline:

"Hello Professor Tufte, I can take credit (as well as any blame) for the Times graphic.

I'm not sure that the whisker lines without labels would have been legible to all readers (an early draft without labels at far left was not immediately recognized as showing wins and losses by two in-house readers, prompting the more prominent labels in the final version). But I do agree that the 'Below, each tick mark ...' instructions are redundant. They were only included because they were unobtrusive, and in case any skeptical readers went looking for clarification.

The word 'victories' instead of 'wins' is Times style, for the reason you mention, and I didn't add my name to the graphic in part because the data it is based on was readily available, and in part because the overall presentation seemed simple enough to not merit a credit."

-- Edward Tufte, June 28, 2006

Voting records

Sparkline implementation of Voting Records:

The usual method of detailing voting records is massive text tables consisting of "Y N" votes. I've never been able to read these.

Is it possible to view voting records visually in a graphic literally word-size? Here are a few attempts:

http://autosocratic.blogspot.com/2006/07/sparkline-implementation-of-voting.html

The tragedy of the Washington Post site, which purports to list and summarize the results of rational deliberation in a country founded on reason, can be found at the bottom of this page. Look at the available summaries. ASTROLOGICAL?

http://projects.washingtonpost.com/congress/109/senate/2/votes/190/

-- Mike Round (email), July 3, 2006

The problem with congressional votes is that their content and relevance needs to be at least briefly described with some text accompanying the vote. The Washington Post bill numbers and vote descriptions are mysterious except to insiders; and sparkline histories also don't catch content and relevance. Perhaps a better way would be to identify the 20 most important votes in a session and then talk about the voting distributions.

There are all sorts of vote ratings made by various political groups that serve better than the WP list and sparklines.

I always enjoy seeing sparklines but this application should have more text describing each vote, or perhaps different binary categories.

The WP breakdown by astrological sign shows what randomness can produce in the way of pseudo relationships, and so in its somewhat silly and prankish way shows what vote distributions look like under the null hypothesis. That might calm down the rage to conclude when studying other cross-tabs of votes.

There is a substantial literature in political science using multi-dimensional scaling to coax some more complex and richer meanings out of voting records (House, Senate, Supreme Court) compared to univariate marches through the votes. Although even here remains a problem of separating out the key votes from the many trivial votes taken in the House. There are probably ways to derive importance weights for votes. And also various consent rules are used to mask votes; for example, there was no vote by name on the House "pizza rule" on few years ago, where lobbyists could supply pizza to members of Congress on the floor, or something like that.

-- Edward Tufte, July 4, 2006

Stacked sparklines from Science magazine

An excellent use of graphics, including a 3D stack of sparklines:

Source: Thomas Taubner, Dmitriy Korobkin, Yaroslav Urzhumov, Gennady Shvets, Rainer Hillenbrand, "Near-Field Microscopy Through a SiC Superlens," Science, 313 (15 September 2006), p. 1595.

-- Edward Tufte, September 25, 2006

Executive dashboard uses sparklines

One of the winners of the "Business Intelligence Network 2006 Data Visualization Competition" is very well done and uses sparklines:

http://tinyurl.com/keqjw (from dashboardspy.wordpress.com)

- Dave

Ask ET thread on executive dashboards: http://www.edwardtufte.com/bboard/q-and-a-fetch-msg?msg_id=0000bx

-- David Person (email), September 26, 2006

ESPN sports graphics

ESPN.com has introduced a new graphic this season on their NFL scoreboard. In the space of four or five words we get a representation of the field, an indicator of which team has the ball, the direction of play, the location of the ball, yardage gained in the previous down(s), and the distance between the line of scrimmage and the first down marker. When a team enters the 20-yard "red zone" of prime scoring position the colour shifts accordingly, making it easy to scan a page of these graphics and quickly spot where the action is.



The graphic could probably be more compact, if necessary, and is useful even without the label at right ("1st and 10 on the 14", etc.)

I'd like to have a display like this in the on-screen interface for my cable TV box, with such a graphic next to each channel currently showing an NFL game.

-- Thomas Anthony (email), October 1, 2006

Sparklines in perspective

An interesting possibility for stacked sparkline architectures with information on the apparent surface beneath each sparkline. There's the usual problem, however, that the horizons toward the front may mask the horizons and surface toward the rear in real data:

-- Edward Tufte, October 16, 2006

Periodic table of elements

Incorporation of sparklines (sparkbars?) into the periodic table: here

-- Matt B (email), October 31, 2006

Problems with periodic table example

Regarding the "sparkbars" on the periodic table, the major flaw in that table's design is the scaling used for the isotope distributions. The most abundant isotope in each case is full scale, even if it is significantly less than 100% abundant. For example, on this table, gold 197 appears at the same height as mercury 202. In actuality, while Au- 197 is %100 abundant, Hg-202 is only about %30 abundant. Rescaling all of the sparkbars to the same scale (Max y = 100% abunance) would be better. Certain disciplines (mass spectrometry) might benefit from the existing scaling, but at the very least a note describing the scaling should be included.

-- Paul Glaser (email), December 12, 2006

Sparklines for monitoring search

Dear Edward, here is a paper that uses sparklines:

http://www.cond.org/www520-adar.pdf

"Why We Search: Visualizing and Predicting User Behavior" Eytan Adar, Daniel Weld, Brian Bershad, and Steven Gribble, to appear at WWW'07

Best wishes, eamonn

-- Eamonn Keogh (email), March 9, 2007

Response to Sparklines: theory and practice

Dear Edward, There is a very interesting project at UCLA that uses Sparklines (http://sensorbase.org/)

Best wishes, eamonn

-- Eamonn Keogh (email), April 22, 2007

It looks very good. Should have been done this way years ago.

-- Edward Tufte, April 22, 2007

Sparkline aspect ratio

In Beautiful Evidence, I verbally implemented ("make sparklines lumpy, not spikey and not flat") Bill Cleveland's brilliant analytical method of choosing aspect ratios banking to 45° (William S. Cleveland, Visualizing Data, 1993).

A recent paper by Jeffrey Heer and Maneesh Agrawala, "Multi-Scale Banking to 45°," IEEE Transactions on Visualization and Computer Graphics, 12 (September/ October 2006) provides a way to generate banked sparklines by inputting the data set and the typeface (which provides the vertical dimension if the sparkline is to fit a typographic line, as is usually the case).

The link to Heer and Agrawala is here.

The general lesson of the paper is to look at multiple views of the same data—because different views answer different questions.

-- Edward Tufte, April 27, 2007

Response to Sparklines: theory and practice

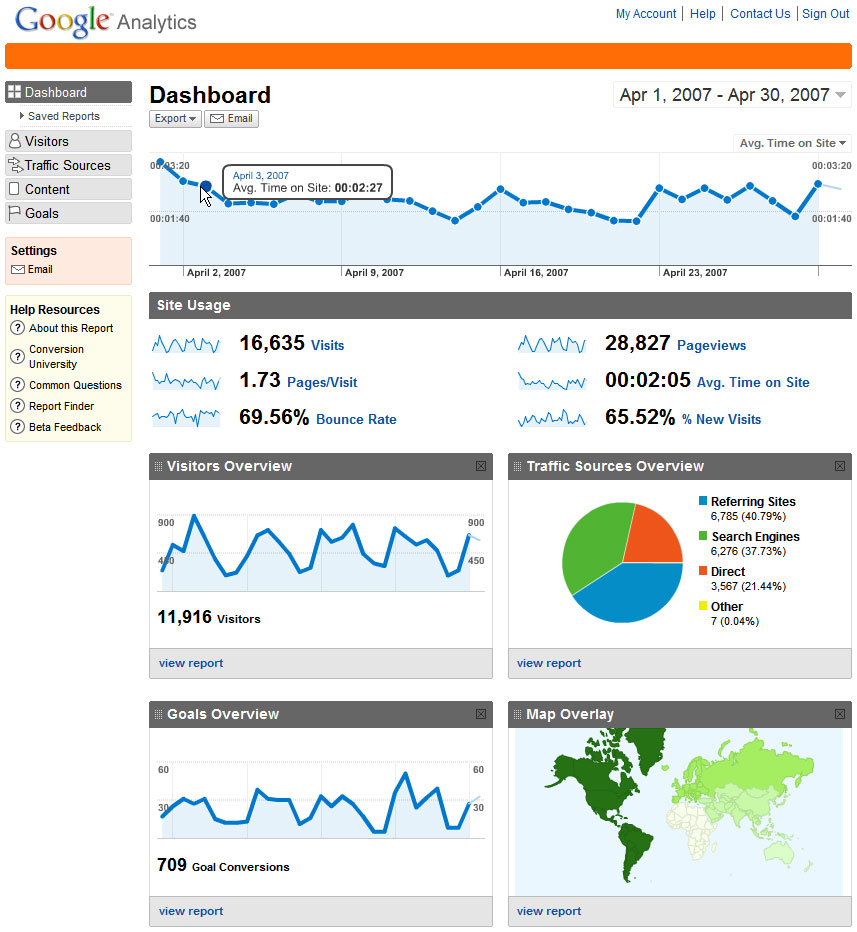

Google have incorporated sparklines into their new release of their Analytics (web site statistics) software.

Have a look here: http://analytics.blogspot.com/2007/05/new-version-of-google-analytics.html

Shame about the pie chart though.

-- Ben Bodien (email), May 9, 2007

Response to Sparklines: theory and practice

Google Experimental Labs is now offering a timeline view that uses sparklines -- see http://www.google.com/experimental/

-- David Mackinder (email), May 17, 2007

Response to Sparklines: theory and practice

Not a sparkline per say, but a word-size graphic: the Summize folks offer a more data-rich alternative to 5-star ratings. [via]

-- Bil Kleb (email), May 25, 2007

Response to Sparklines: theory and practice

Focusing on the aspect ratio, to me, detracts from a more important issue regarding this data presentation. The sparklines are intended to demonstrate the performance of the system, with the gray-bands denoting "common-cause-behavior"; i.e., the normal performance of the system. These bands are not imposed on the data, but arise from the data themselves. Therefore, there should be very few points outside the bands. Being there are many suggests a recalculation is in order.

Regarding aspect ratio, the spiking "grains/cereals" points above may or may require rescaling. Doesn't it depend on the goal of the data presentation?

-- Michael Round (email), May 27, 2007

Standardization

Sparklines make it easy to compare multiple time series. As always, scaling is crucial: It can ruin or raise beautiful evidence. The following sparklines depict stock quotes of selected DowJones companies for 2007-01-03 through 2007-06-15.

The graph on the left scales from min to max for each quote, misleading the eye to believe that the series could be compared visually. However, without processing the min and max values mentally one cannot. The graph on the right side provides a "fair" scale as it scales from 0 to the max of all quotes, yet it is useless because most of the evidence is gone.

Very helpful, but rarely used in everyday practice is standardization, which is very intuitively understood. The graph shows the variance from an identical initial investment of 100 USD for each quote, in other words, your gains and losses.

-- Nicolas Bissantz (email), June 23, 2007

Response to Sparklines: theory and practice

During the marvelous 2 day seminar in Palo Alto which finished today we looked at the application of sparklines to the historical performance of mutual funds. Most of the audience agreed that the patterns were distressingly similar and not very useful for distinguishing between interesting and non-interesting funds.

Has anyone worked out a way to superimpose all of the sparklines from a group to make the light-grey limits area against which we could then plot the contrasting sparkline of a particular fund? This would allow a more direct comparison of performance against peers.

-- Mike Goertz (email), July 14, 2007

Excel sparklines (with soft shadows?)

TinyGraphs - Open Source Excel Add-in for Sparklines Generation

We are pleased to announce the release of TinyGraphs, an open source Excel add-in for generating sparklines. The plug-in creates a sparkline for every row of data in a rectangular block of cells. It supports lines, area and column charts and provides options for customizing them. The tiny graphics generated by the plug-in can be further reformatted for more variations in Excel, like soft shadows, 3D and glow effects.

More Information http://www.spreadsheetml.com/products.html

-- Mark (email), August 28, 2007

Google graphics

Google has released a fairly simple API to produce line plots, scatter plots, bar graphs, Venn diagrams and pie charts. Data and presentation information are encoded into the URL for an image. While there are plenty of opportunities for chartjunk and poor displays, it seems possible to make decent plots. Here is a sparkline created with the API . See Jonathan Corum's Google Charting Tool for a simple way to create the charts.

-- Michael Galloy (email), December 12, 2007

OS monitoring with sparklines

MenuMeters is a MacOS X utility by Alex Harper which can make sparklines in your menubar. It's a good example of using sparklines to present data in a text-sized space. Here is a screenshot of my menubar; the sparklines are for network traffic (inbound up, outbound down), CPU utilization (user top, system below), and memory utilization (active top, unpaged bottom), respectively. Each is updated periodically; each is a menu with much more detailed information.

• Picture 1.png

-- Garth A. Dickie (email), December 15, 2007

Baseball sparklines

Source: New York Times, December 15, 2007, p. D1

-- Edward Tufte, December 19, 2007

Financial sparklines

I maintain a site that keeps track of changes to the Dollars Traded Index and recently added sparklines to all of the daily posts that highlight companies that had above normal volume of dollars traded on the NYSE/Nasdaq. I used the Google Charts API to render the graphs, which made my job much easier. The sparklines add context to understand why a company is on a given report and if a spike in dollars traded is on the first day of some breaking news, coming down from a previous peak, or enjoying a longer term trend. It also gives the user the ability to visually filter for the kind of trends they like to follow the most. I believe it has made the previously text-only data tables a lot more usable.


Adds/Drops for Thursday, December 27, 2007


Also at the bottom of each table I link to a post to further explain the sparklines in more detail:
Sparklines

Eric Wikman

-- Eric Wikman (email), January 1, 2008

Google's financial sparkllines

Google's redesign of sparklines fails to capture the intensity and capacity of real sparklines. Also, sparklines should usually have some scaling (as in most examples in Beautiful Evidence) and should be deeply integrated into tables, text, or graphics. Here are model examples (Beautiful Evidence, pp. 50, 51):

-- Edward Tufte, January 2, 2008

EveryBlock sparklines

Good sparklines tracking building permits by neighborhood over time here.

-- Edward Tufte, January 23, 2008

Interactive editing of sparklines

I'd like to see more ways to create sparklines interactively - being able to modify the appearance directly - rather than the programmer-oriented approach, where numbers are typed into scripts.

I use this one I wrote myself, but there should be plenty more...

• sparkline.png

-- cormullion (email), March 1, 2008

Sparklines useful for USGS streamflows

Sparklines could help protect life and property if they were used to present the USGS online data for streamflows. The current presentation is dismal. For example, find a gauge for a river near you on the USGS’ page of Daily Streamflow Conditions. Click through to the individual page for that gauge, and generally you will see this information (some pages show more data; others, less):

• a plot of streamflows (or “discharge”) recorded over the last 7 days (you can extend the range to as much as the last 31 days, but that does not change the main point of this argument)
• a table showing this summary information for the current date:
  • the lowest flow on record
  • the 20th-percentile flow
  • mean flow
  • median flow
  • most recent instantaneous flow recorded (today)
  • the 80th-percentile flow
  • the highest flow on record
• a plot of gauge heights recorded over the last 7 days
• a table of summary information, similar to that described above for streamflow, for gauge heights on the current date

What's missing? Perspective. For example:

• If the stream is near flood stage, the corresponding value will appear on the respective plots, but otherwise there is usually no indication of how far above or below flood stage today’s flow is.
• There’s no information for the flood of record or for any other historic benchmarks not recorded on the currrent date. A rancher can tell whether the stream is high for today, but not whether it’s even close to the level it reached when it drowned his livestock 30 months ago.
• Realistic ranges of values are often absent. The highest and lowest values shown on each plot depend on the values recorded over the last 7 days. If there has been little change, the full vertical range of values displayed may represent only an inch of difference in gauge height, for example. But the height of the display is the same, regardless of whether that range is 0.01 foot or 100 feet. So trivial changes are exaggerated, and historic changes are minimized.
• You can see how gauge height varied with streamflow over the last 7 days, but not how it will respond to values outside that range: Will the additional 3000 cfs coming downstream raise this stream an inch or 12 feet when it gets to this gauge?
• For that matter, the wealth of information available about seasonal behavior of this stream is absent. When is it typically low? And how low is that, typically?

A spark chart would show all of the above and more. It would be particularly useful when flooding occurs outside of the typical flood season—for example, when heavy rains fall in usually bone-dry July, how does the flooding produced compare to the typical spring floods? Will it merely call for a change in plans for the weekend, or will it pose a great danger to lives and property? In fact, it was just such an event a little over five years ago that led me to propose to the local USGS office that they use spark charts to display this information.

So far, no response.

-- Cliff Tyllick (email), March 1, 2008

Bivariate financial performance matrix

In looking at financial time series, one of the challenges is to be able to analyse a very large number of bivariate relationships. Some of this can be achieved by statistical measures but visualisation of the relationships typically has a significantly positive impact. In the attached image, I've attempted to do this (with inspiration attributable to Cleveland) by plotting these bivariate relationships in a matrix. As this analysis is time series analysis, and given that the relationships are symmetrical, I have split the two halves of the matrix into the top-right showing the bivariate x-y plot (the different format datapoints are to highlight different periods of time, with more recent data darker and the latest datapoint shown as red with a callout), and the bottom left showing the time series of the difference between the two series (for those who are interested, the series being plotted are of credit default swap indices, ranked from lowest to highest average spread down the rows with the exception of the two emerging market indices in the top-left - I work in Emerging Markets). The diagonal then shows the time series of each individual index. I would be curious to know if anyone has any feedback or suggestions on how this could be improved.

-- Will Oswald (email), April 30, 2008

Will Oswald's Cross-Credit Historical Relationships matrix is wonderful. Always a fan of these "you are here" plots, I love the black dots against the grey past-values distribution and the red current value. We can see the current data in relation to the past. Beautiful layering.

Perhaps what is most instructive is how the simple times series don't tell the whole story as they are only marginal distribution summaries; Will has shown us the joint distirbution, which, as is typical, tells a richer story.

Compare the data for the third and fourth entries (NA.IG and NA.IG.HVOL) to the data for the sixth and seventh entries (NA.HY B and NA.HY). Looking just at the time series, the third and fourth entries look mildly similar: flat, then big bump, then rise-to-peak, then fall. The difference plot shows that the differences go flat, then attenuated bump, then rising bumps. The joint distribution shows a really tight relationship, as evidenced by the points so close to the line.

Now look at the sixth and seventh. The time series look very similar: small rise then fall, then bump, then bigger rise then fall. The difference plot isn't particularly special but the scatter plot of the joint distribution shows that the recent data are completely different from what has happened in the past: all but one of the black dots is completely removed from the other points!

Well done, Will.

Rafe

-- rafe donahue (email), April 30, 2008

More performance monitoring

I've been working on a light weight performance monitoring solution which can be hosted on a LAMP (or WAMP, or OSX =) installation and uses the Google chart API to present data in a sparkline format. I'm using shaded bands (with borders determined by 20-80th percentiles) to help users quickly detect anomalies.

There is a blog about this approach here

You're welcome to view a demonstration at NumbrCrunchr.com or contribute to the open source project http://code.google.com/p/numbrcrunchr/

Look forward to people's thoughts on this approach.

• sparkline.png

-- Tim Koopmans (email), July 10, 2008

Tracking politics with sparklines

The first time i see sparkline in 'the open'. although i'm not really sure what they represent. http://everymomentnow.com/election08/obama/

-- Remy Jon Ming (email), September 16, 2008

Dear Remy,

The sparklines you refer to represent the article frequency for their adjacent keyword over time. In this context, they are meant to allow the user to look for any 'outliers' or keywords with a strange or divergent media history that might be worth exploring -- that is to say, investigating *why* they have this unusual or divergent graph by looking more closely at the contexts of their mentions.

Best, Craig

-- Craig Mod (email), September 16, 2008

Sparklines for retail data

I saw this use of whisker charts on retailmenot.com, a website that lists coupons for online retailers, and thought it was an effective use of whiskers.

The ups represent successful uses of the provided code as reported by users of the site, and down represented unsuccessful uses. This can provide useful data as to whether the code is still in effect.

-- Marcus J.T. (email), September 29, 2008

Massive application of sparklines to energy data

Another example of the increasing use of dynamic sparklines/small multiples:

http://tonto.eia.doe.gov/country/country_energy_data.cfm?fips=US

Navigating to drill-down charts with hover data and raw data is quick and intuitive. I would have found a reference line at the zero value for the net exports/imports sparkline helpful. Also, removal of the boxes around the sparklines might work better.

Here is the global navigation page, which gives multiple ways of accessing country-specific charts:

http://tonto.eia.doe.gov/country/index.cfm

Jason Mak

-- Jason Mak (email), November 25, 2008

Excel sparklines

I have been using time series sparklines in Excel for quite some time now, and the most frustrating part of it was that I had to write code to re-scale the y-axis as the dataset changed - I'm averse to using anything that requires code when I'm often using real-time financial data and this would slow things down.

This is easy to resolve though, when considering that sparklines have neither x-axis nor y-axis labels. As the obvious solution, I take my original underlying data and express this as a percentage of the min and max values and I then plot these percentages. This then means that I can fix the min and max values for both axes at zero and 1, respectively, and hence the chart rescaling is done automatically.

Perhaps this is an obvious idea to other contributors, but it was revelatory for me and dramatically eases my ability to use sparklines in Excel far more widely - hopefully, this will also ease implementation for other users too.

-- Will Oswald (email), December 4, 2008

Multiple sparklines in circles

Remarkable graphic from the current issue of Genome Research, reported by Nicholas Wade of The New York Times here.

-- Edward Tufte, December 25, 2008

Sparklines in Origin 8

Sparklines used as column headers in Origin 8 (an excellent scientific graphics program):

http://www.originlab.com/index.aspx?s=8&lm=326&gclid=CJiOgJPe35cCFRPBDAodmRapDg

-- Edward Tufte, December 26, 2008

Sparklines on iPhone (and other mobile devices)

Sparklines are shown here as a generalized display mechanism which works on any Smartphone, Blackberry or iPhone 2G/3G. More details at http://www.transpara.com.

Best Regards,

Michael Saucier

-- Michael Saucier (email), January 6, 2009

I believe sparklines can make an important contribution to corporate financial reporting. I have created several examples in a paper I have submitted to an academic accounting conference, and have posted on SSRN. The link to the paper is http://ssrn.com/abstract=1325998.

I have attached one example, a company that began committing fraud by "holding the books open" at the end of each quarter, starting with the last quarter of 1998, and shifting revenue into the quarter that was ending from the next quarter. The sparklines make the suspicious pattern obvious.

• TECHNOLOGY CONFEDERATES example.pdf

-- Daniel Tinkelman (email), January 11, 2009

Craziest use of sparklines yet? What do you think, Mr. Tufte?

The visualization: http://transit.frumin.net/subway/spark.php and the author's explanation: http://frumin.net/ation/2009/05/spark_it_up.html

Xaquin G.V.

-- Xaquin G.V. (email), May 8, 2009

@ Xaquin G.V.

love the graphic, but have a suggestions: I think you should detrend the data by removing the average (maybe scaled average?) to see really the differences in each station. to me the overall trend outshines the pattern at particular stations.

Josh

-- josh (email), June 21, 2009

I just recently implemented a project that uses sparklines in a dynamic fashion on an HTML page. It takes advantage of the jQuery sparkline plugin.

This isn't the best example of sparks because it presents the data in a tabular fashion instead of a more word oriented fashion, but I was looking for a way to be able to densely pack in the data while still providing the ability for the reader to "feel" the trend of traffic and sparklines fit that bill.

The code is all open source and license and download instructions are in the HTML source of the index.html page.

http://downloadstats.mozilla.com

-- Daniel Einspanjer (email), July 3, 2009

Excel 2010 to offer "sparklines"

I just read on Ars Technica (http://arstechnica.com/microsoft/news/2009/07/office-2010-tech-preview-now-free-web-apps-later.ars) that Microsoft Excel 2010 will offer the ability to include sparklines embedded in spreadsheets. The implementation details are of course unclear at this time, and it wouldn't be Excel without redundant chartjunk and a mere handful of data points in the example graphic.

If you have the patience to watch some promotional video, visit http://www.microsoft.com/office/2010/ then click "Excel 2010" on the left, and a little less than half-way through, at 1:47 the new feature is introduced. I can't quite tell whether they're calling it "sparklines" or "smartlines."

(Links may change in the future.)

[For Excel sparkline confirmation, don't have to watch the video if you go here: http://www.fastcompany.com/blog/kit-eaton/technomix/microsoft-ties-ribbon-menu-office-2010-floats-it-cloud-free

-- Dave Brown (email), July 13, 2009

Google Finance recently made over their stock pages and there appear to be sparkline-like objects.

-- Dan Nolen (email), July 15, 2009

Here is an Excel PM talking about Sparklines in Excel http://blogs.msdn.com/excel/archive/2009/07/17/sparklines-in-excel.aspx

-- Brian Kennemer (email), July 17, 2009

Reporting in from The Northern League ... a lead change for the first time all year: http://www.rationalsys.com/aplayattheplate.html

-- Michael Round (email), July 20, 2009

Google's sparklines implementation

Google Analytics features sparkline graphics in portions of its reports:

• google_analytics_sparklines.png

-- Daniel Thornton (email), July 24, 2009

Phish Statistics Visualized: Summer Tour 2009

Hey there -

I recently went public with my first blog post featuring sparklines, using them to represent live performance data for the band Phish.

Here's a link to the post...

http://jamtopia.com/blog/phish-statistics-visualized-summer-tour-2009/

... which features two sparkline exhibits based on the band's 2009 Summer Tour.

The first exhibit looks at some of the most played songs from the tour while the second exhibit explores the shortest and longest sets, based on number of songs played.

I hope you get a kick out of this most frivolous use of an otherwise important technique. They were a little painful to put together but quite rewarding in what they revealed.

Take care,

Todd Levy

http://jamtopia.com

-- Todd Levy (email), August 17, 2009

Google finance has introduced an interesting but incomplete use of sparklines to compare different stocks within the same industry sector. Go to finance.google.com and type in a stock symbol (e.g. IBM). The sparklines are used for Related Companies. The column header indicates a choice of day/month/year, but there's no way to blow-up the sparkline to identify the actual timeline and values being displayed in the sparkline. This seems like a natural desire on the part of the user (or me, at least), given the potential to match the data in the sparkline in the highly interactive graph at the top of the same page.

-- Bob L (email), August 17, 2009

Flickr has been using a single sparkline on its user accounts "recent activity" page to give a glance at the user's site traffic:

• flickrsparkline.png

-- Greg La Vardera (email), August 25, 2009

We put easy-to-use sparklines on the iphone in a new app called TraxStocks. These can do some of what is requested above. A posting in a different thread on this site got us some helpful feedback a few months ago.

Link to TraxStocks at the appstore

The things that make this app different than many of the other stock apps out there are

1) Sparklines

2) Allowing comparisons. You can drag the top sparkline around the screen over any other sparkline. OR, you can put several items together a single graph if you turn your iphone or ipod touch on its side. The images I've attached show only two stocks, but you can have up to 10 on the graphs in landscape mode, and there's no limit to the number of sparklines in the portrait mode.

3) Elimination of chart junk. Almost all all "non-data ink" has been erased. There are a few exceptions that seemed to provide a needed visual boundaries.

4) Swiping through time

5) The ability to look broadly at trends, and immediately get specific data for specific dates by just touching the screen at that spot. A bubble pops up showing the date and value.

We welcome more feedback -- especially from readers here. These displays could be used for nearly any data over time, but we started with financial data. I look forward to hearing your thoughts. Thanks.

Aurora

-- Aurora Matzkin (email), September 8, 2009

Many people find the TraxStocks displays shown above fairly intuitive on the device. In my previous posting I failed to include a link to the "key" for the iphone sparklines shown in the images.

link to explanation

This link is also directly accessible from the app by touching the "i".

-- Aurora Matzkin (email), September 8, 2009

This is my attempt at a sparkline table.

It was done in Excel, using the Sparklines for Excel freeware add-in http://sparklines-excel.blogspot.com/

I think having the initial year to the left of the line works well.

I'm told the next version of Excel (Office 2011) will have sparklines.

--- Gary Klass 9/17/9

-- Gary Klass (email), September 18, 2009

There are two free sparklines add-ins available for Excel. 1) Bissantz Sparkmaker 2) Microchart. I have tried both and they work well.

http://www.bissantz.com/sparkmaker/index_en.asp

http://www.bonavistasystems.com/

Enjoy, Phil

-- Phil C (email), November 3, 2009

I am currently working on sprucing up the LaTeX sparklines package. Here is a short example of my progress so far. These changes will be merged into the existing sparklines package once the code is polished. The most notable feature is the implementation of one of professor Tufte's sparkline ideas from another Ask ET thread -- the ability to highlight a portion of the sparkline graph -- which I haven't seen in the wild yet.

The code is still in a primordial state, (and the appearance is not perfect if you look closely at the PDF). I appreciate any input and help, especially with the code once it is made available.

• weather_IndianLakeNY.pdf

-- Jorden Mauro (email), February 8, 2010

Looks like Garmin, the developer of the My-Cast weather app for iPhone and iPod touch, has put some sparklines to use. Notably, over half of each sparkline functions as a forecast graph:

-- Stanton Sky (email), April 16, 2010

Here's the plot I mentioned in my post yesterday. Apologies for the mediocre scanning quality.

-- Andreas (email), April 20, 2010

Inspired by you perfect article I made a little showcase of how we managed sparklines making the news site for one of the media market majors: Dull tables, hard infographics.

• oldschool-games.png

-- Genn (email), June 4, 2010

Trying not to sound like a guest on a radio show: Long time follower of this thread, first time poster..

A couple of new examples to add to the mix:

Sparklines on a dashboard created without Flash or images (drawn natively in scalable vector graphics capable browsers by javascript and Protovis library):


Link to the method

And a sparkline generator (actually just bars, not lines) for Twitter and Facebook in an Excel workbook: Twitter and Facebook Sparkline Generator

Thanks. Alex Kerin. Data Driven.

-- Alex Kerin (email), June 9, 2010
