Graphical summaries for medical patients
April 2, 2011 | Edward Tufte
3 Comment(s)
Note by ET: In these two articles below, better to change the boxes with normal limits to sparklines with normal limits.

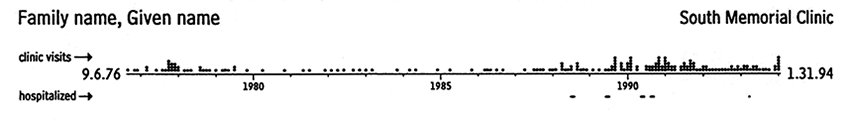

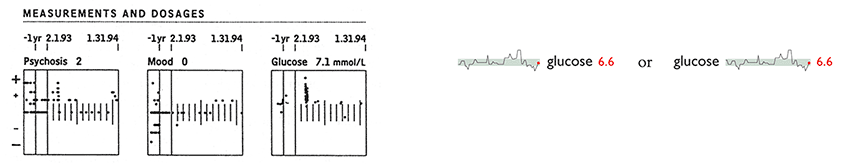

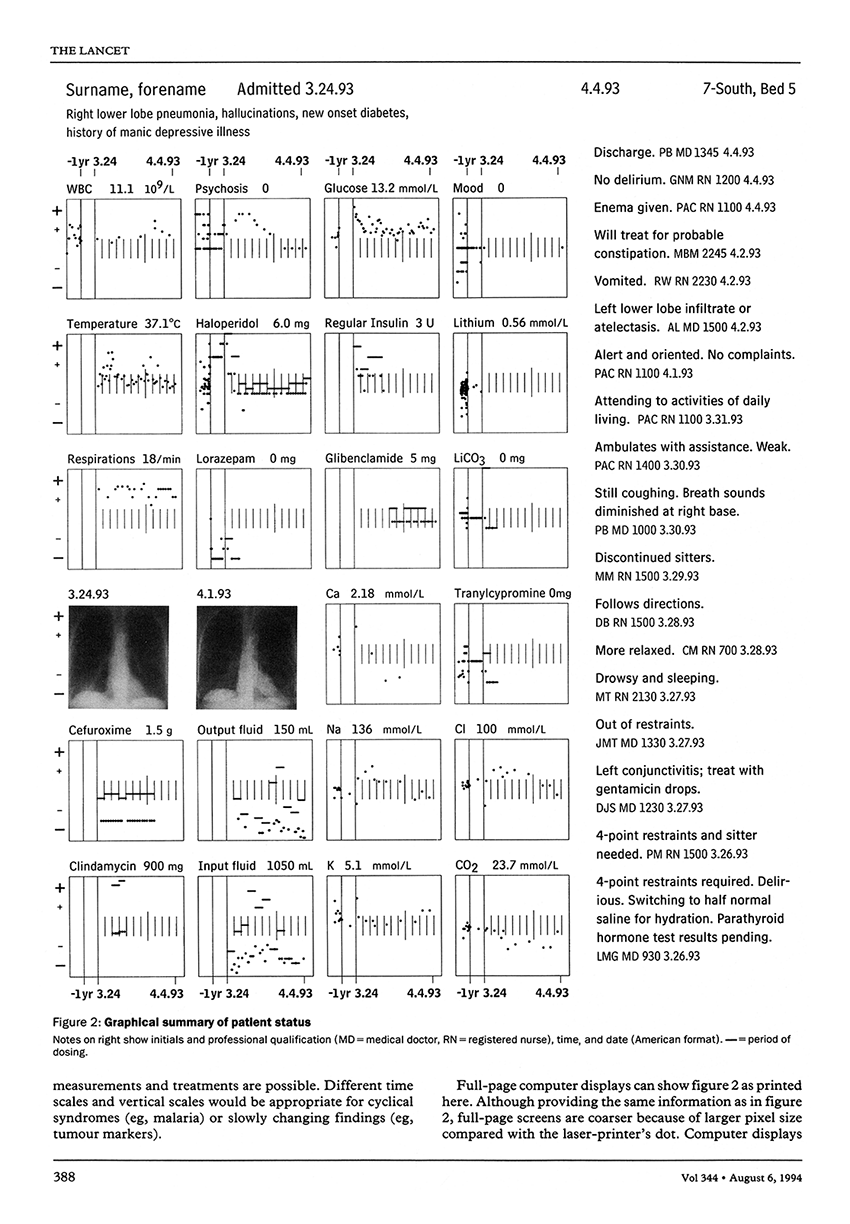

The sparkline-like double-sided patient timeline is medically helpful, data-rich:

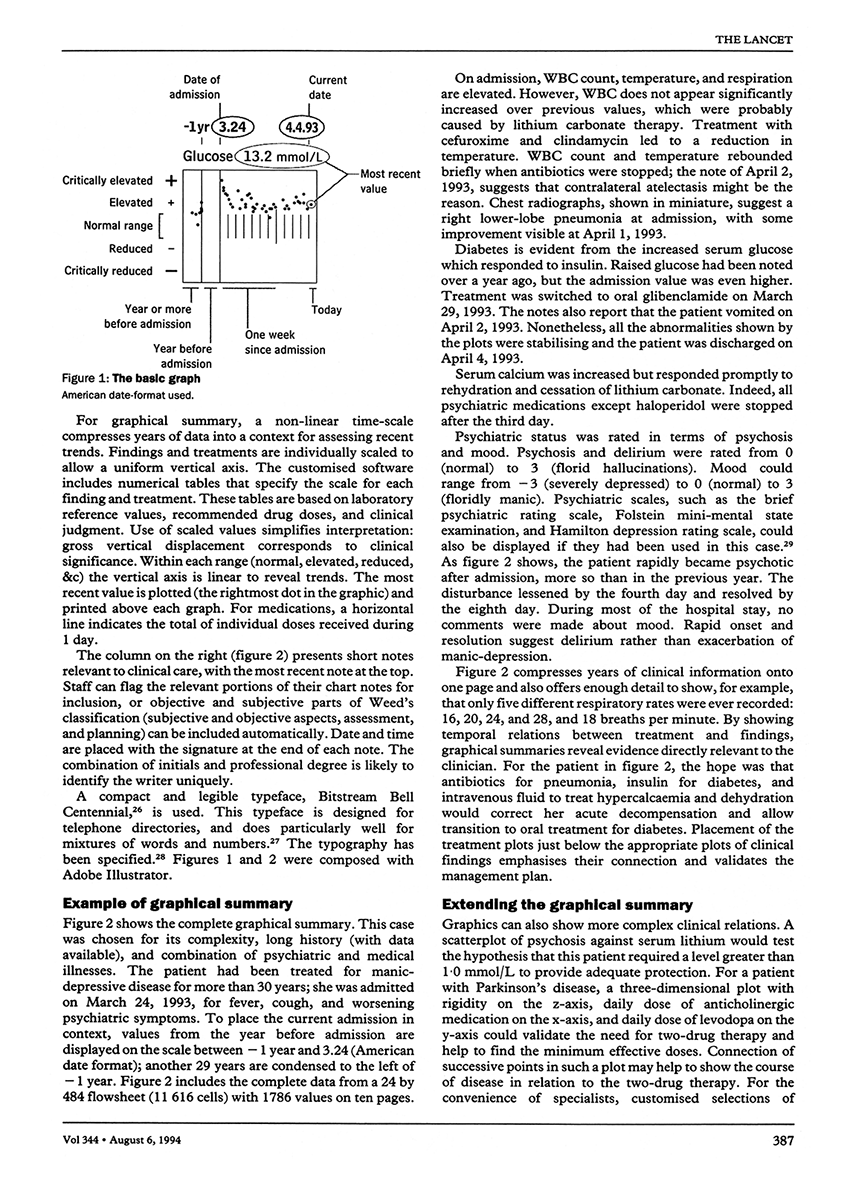

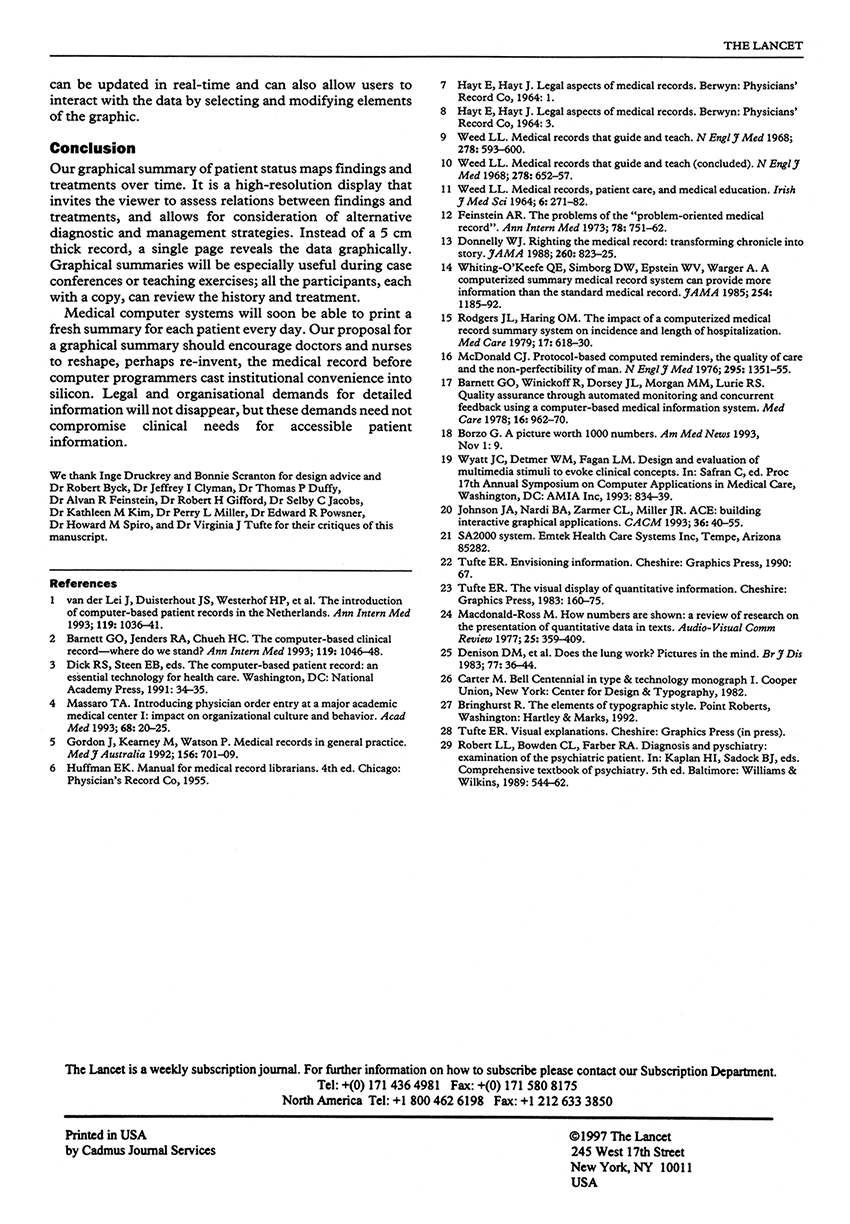

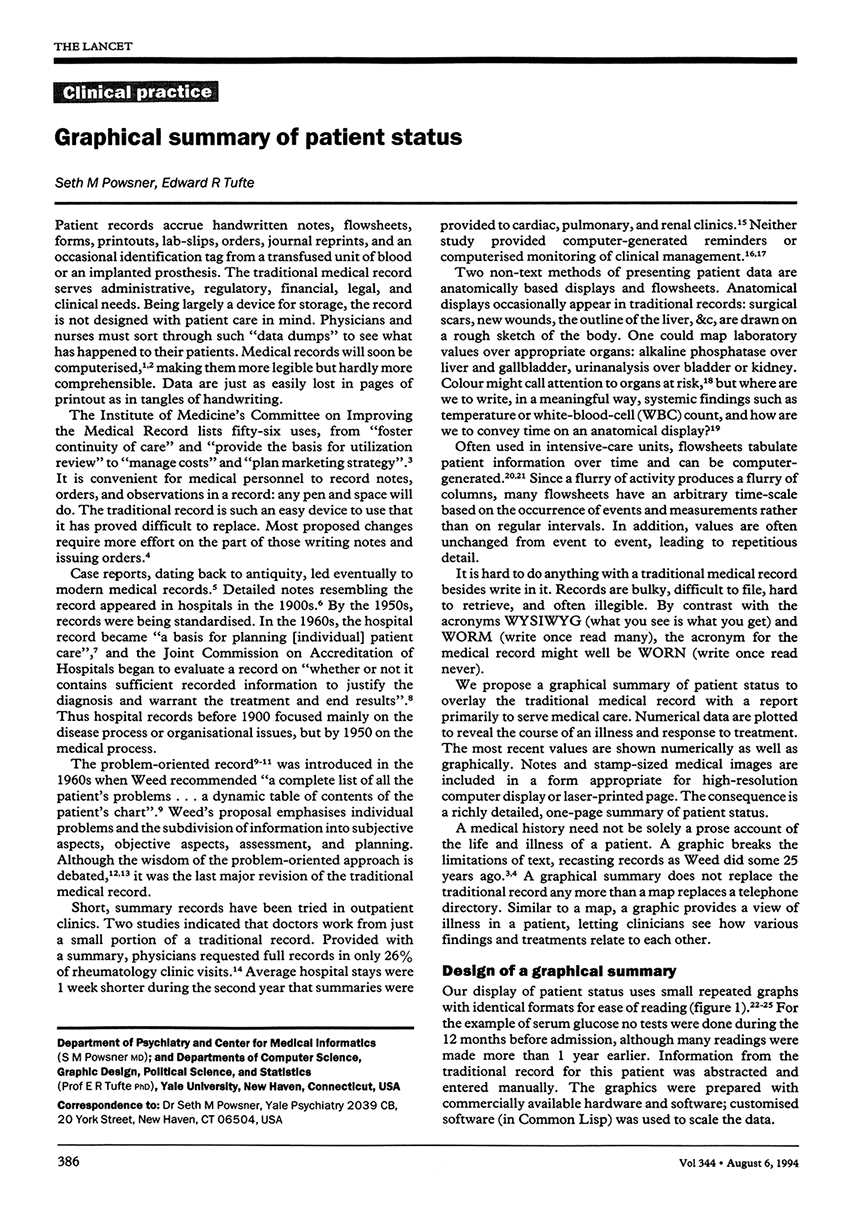

Seth M. Powsner and Edward R. Tufte, “Graphical Summary of Patient Status”, The Lancet 344 (August 6, 1994), 386-389.

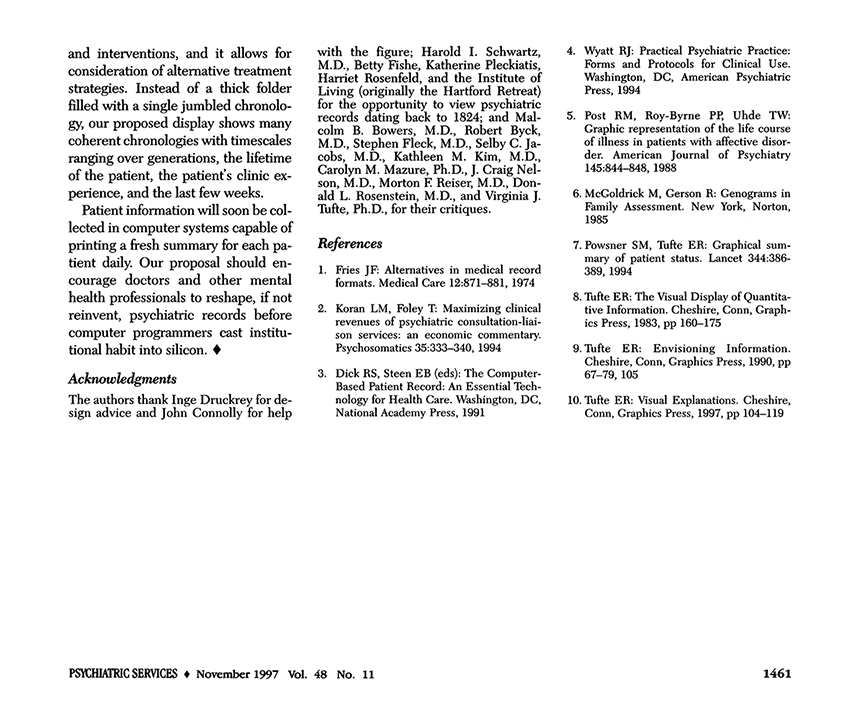

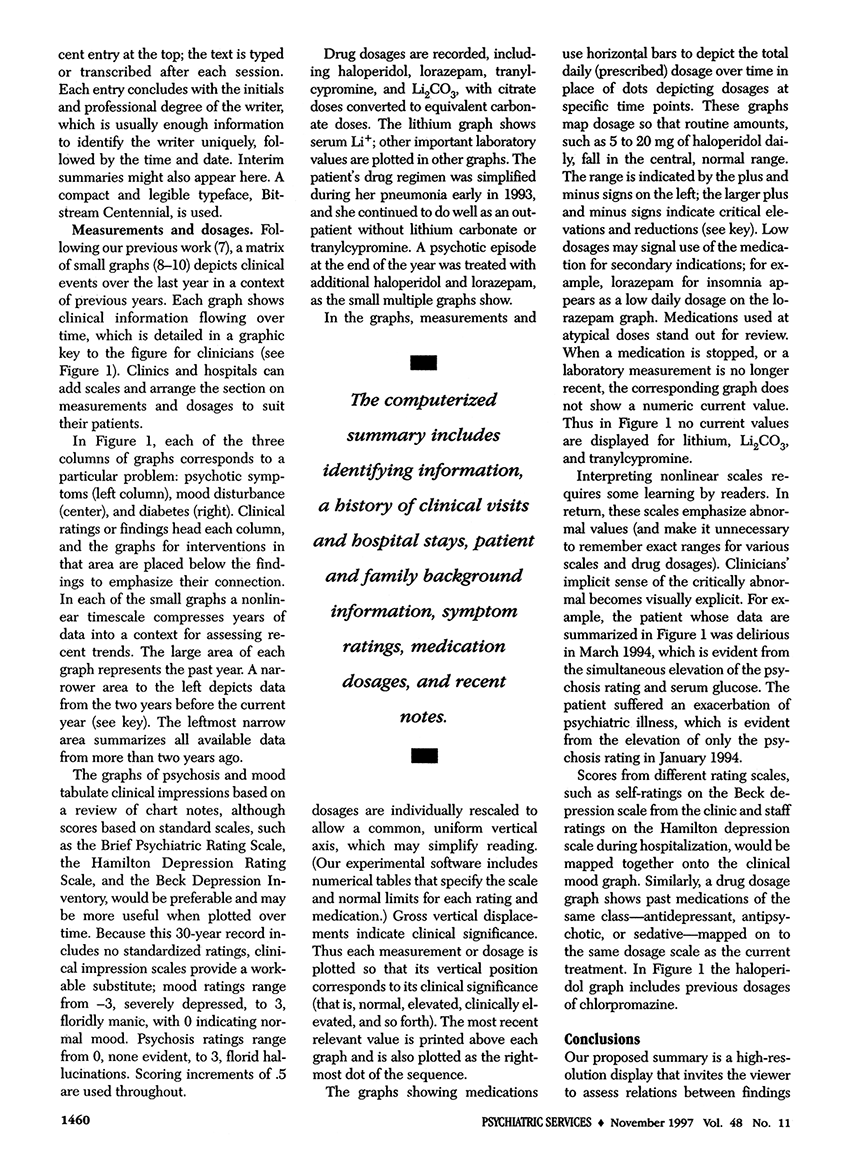

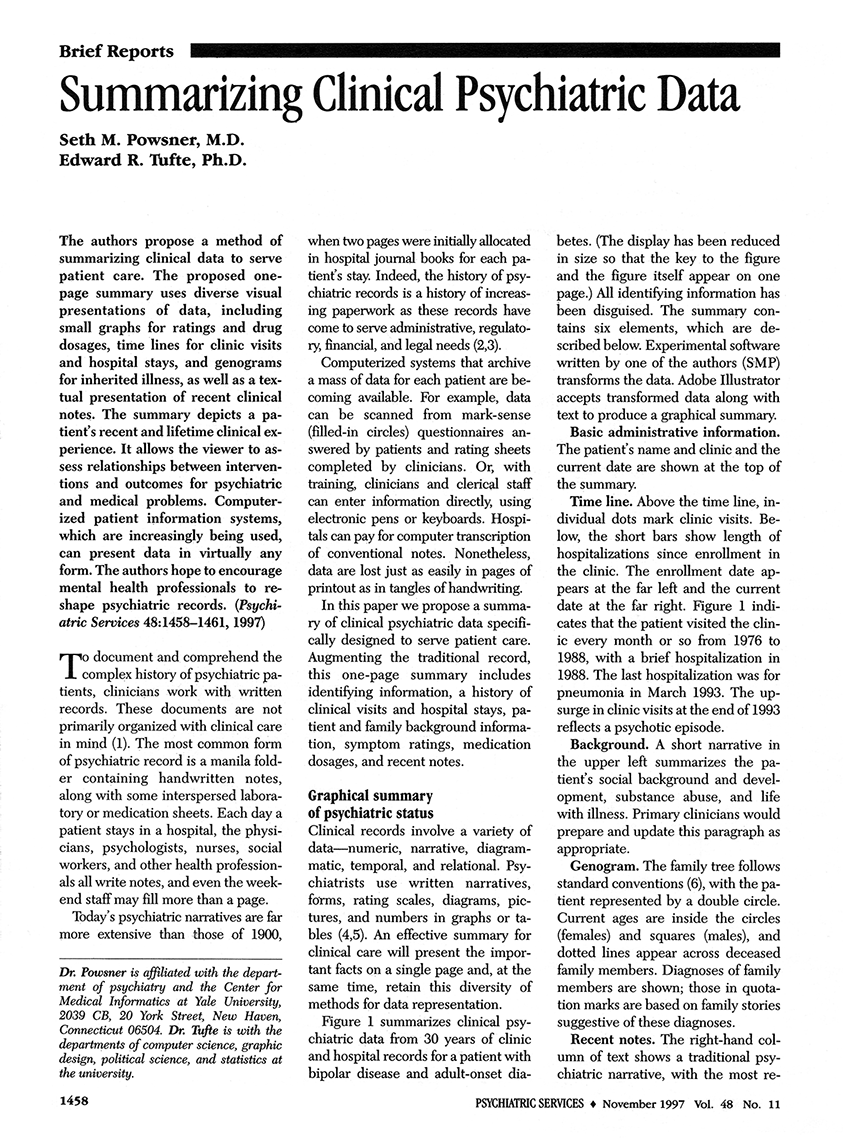

Seth M. Powsner and Edward R. Tufte, “Summarizing Clinical Psychiatric Data”, Psychiatric Services 48
(November 1997), 1458-1461.
From: Edward Tufte, Beautiful Evidence, p.47
Topics: E.T.
